D-Link DSL-224

Description

DSL Port and 4-port Switch, Ethernet WAN Support

The router is equipped with a DSL port to connect to a high-speed VDSL line. The built-in 4-port switch enables you to connect Ethernet-enabled computers, game consoles, and other devices to your network. In addition, any Ethernet port of the device can be used to connect to a private Ethernet line.

Wireless Interface

Using the DSL-224 device, you are able to quickly create a wireless network at home or in your office, which lets computers and mobile devices access the Internet virtually anywhere (within the operational range of your wireless network). The router can operate as a base station for connecting wireless devices of the standards 802.11b, 802.11g, and 802.11n.

Secure Wireless Connection

The router supports multiple functions for the wireless interface: several security standards (WEP, WPA/WPA2), MAC address filtering, WPS, WMM.

In addition, the device is equipped with a button for switching the Wi-Fi network off/on. If needed, for example, when you leave home, you can easily switch the router’s WLAN by pressing the button, and devices connected to the LAN ports of the router will stay online.

Advanced Capabilities of Wireless Network

Support of guest Wi-Fi network allows you to create a separate wireless network with individual security settings and maximum rate limitation. Devices connected to the guest network will be able to access the Internet, but will be isolated from the devices and resources of the router's LAN.

Security

The wireless router DSL-224 includes a built-in firewall. The advanced security functions minimize threats of hacker attacks, prevent unwanted intrusions to your network, and block access to unwanted websites for users of your LAN.

Built-in Yandex.DNS service protects against malicious and fraudulent web sites and helps to block access to adult content on children's devices.

Easy configuration and update

You can configure the settings of the wireless router DSL-224 via the user-friendly web-based interface (the interface is available in two languages – in Russian and in English).

The fast and easy configuration wizard allows you to specify all needed parameters in several simple steps.

Also DSL-224 supports configuration and management via mobile application for Android and iPhone smartphones.

You can simply update the firmware: the router itself finds approved firmware on D-Link update server and notifies when ready to install it.

General features

Hardware
Processor	• RTL8685S
RAM	• 32 MB, SDRAM
Flash	• 8 MB, SPI

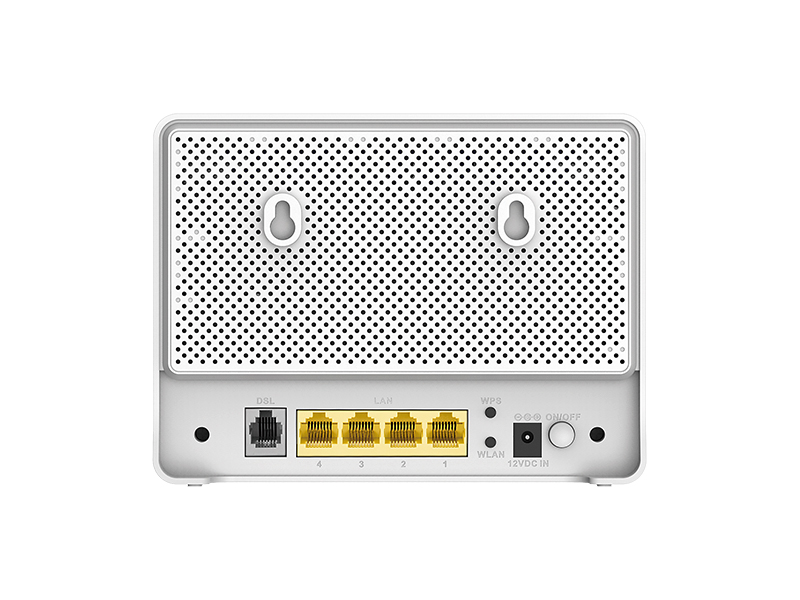

Interfaces	• RJ-11 DSL port • 4 10/100BASE-TX LAN ports

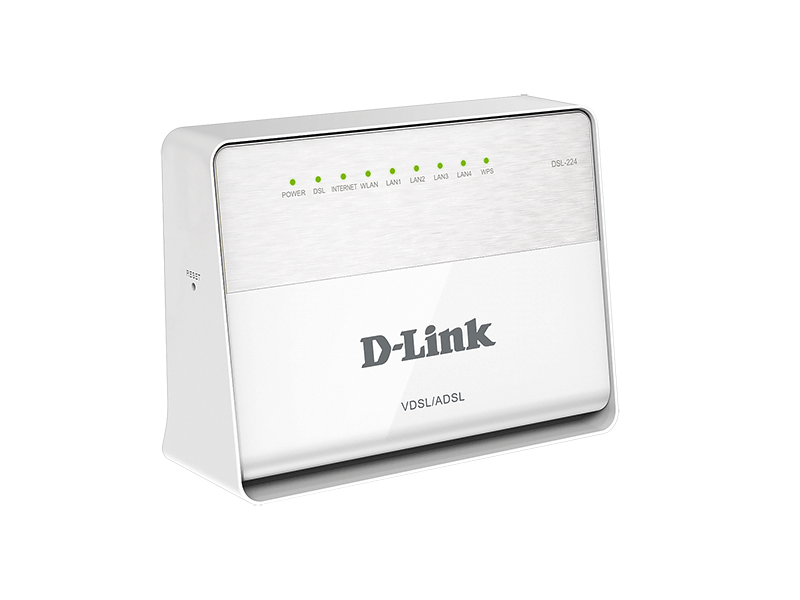

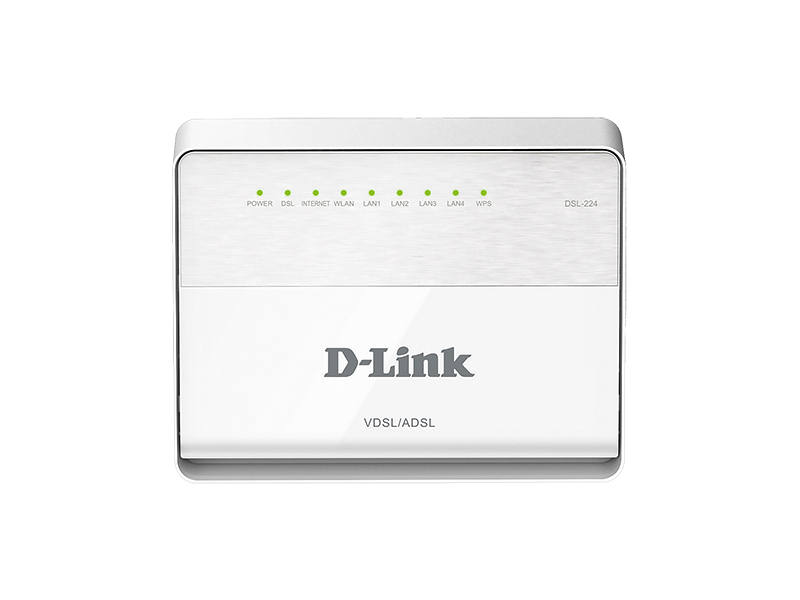

LEDs	• POWER • DSL • INTERNET • WLAN • 4 LAN LEDs • WPS

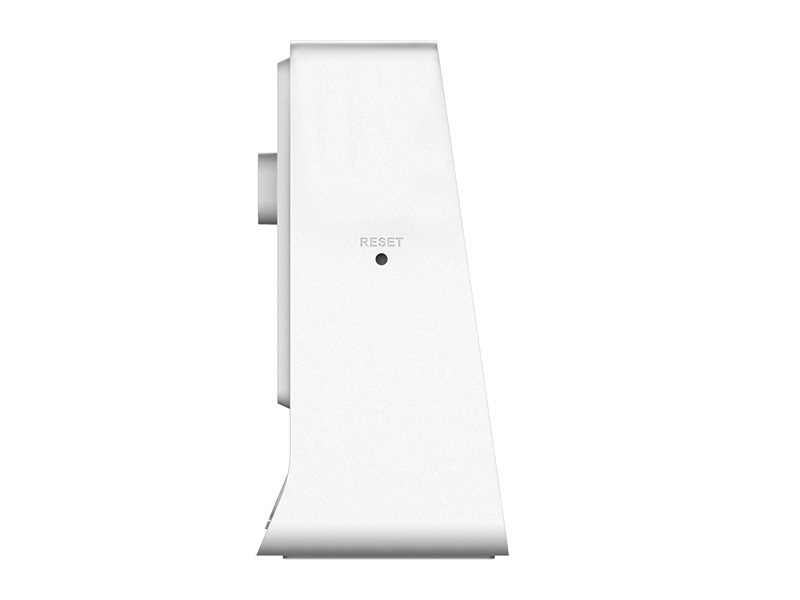

Buttons	• ON/OFF button to power on/power off • RESET button to restore factory default settings • WPS button to set up secure wireless connection • WLAN button to enable/disable wireless network
Antenna	• Two internal omnidirectional antennas (2dBi gain)
MIMO	• 2 x 2
Power connector	• Power input connector (DC)
DSL Parameters
VDSL/ADSL Standards	• VDSL2: ITU G.993.2, support of 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a profiles • ADSL: Multi-mode, ANSI T1.413 Issue 2, ITU-T G.992.1 (G.dmt) Annex A, ITU-T G.992.2 (G.lite) Annex A, ITU-T G.994.1 (G.hs) • ADSL2: ITU-T G.992.3 (G.dmt.bis) Annex A/L/M, ITU-T G.992.4 (G.lite.bis) Annex A • ADSL2+: ITU-T G.992.5 Annex A/L/M
ATM/PPP Protocols	• Bridged and routed Ethernet encapsulation • VC-based or LLC-based multiplexing • ATM Forum UNI3.1/4.0 PVC (up to 8 PVCs) • ATM Adaptation Layer Type 5 (AAL5) • ITU-T I.610 OAM F4/F5 loopback • ATM QoS • PPP over ATM (RFC 2364) • PPP over Ethernet (PPPoE) • Keep-alive for PPP connections
Software
WAN connection types	• PPPoA • PPPoE • IPv6 PPPoE • PPPoE Dual Stack • IPoA • Static IP / Dynamic IP • Static IPv6 / Dynamic IPv6 • Bridge
Network functions	• DHCP server/relay • DHCPv6 server (Stateful/Stateless), IPv6 prefix delegation • Advanced configuration of built-in DHCP server • DNS relay • Dynamic DNS • Static IP routing • Static IPv6 routing • IGMP Proxy • IGMP snooping • RIP • Support of UPnP IGD • Support of VLAN • WAN ping respond • Support of SIP ALG • Support of RTSP • LAN/WAN conversion
Firewall functions	• Network Address Translation (NAT) • Stateful Packet Inspection (SPI) • IP filter • IPv6 filter • MAC filter • URL filter • DMZ • Prevention of ARP and DDoS attacks • Virtual servers • Built-in Yandex.DNS web content filtering service
VPN	• IPSec/PPTP/L2TP/PPPoE pass-through
QoS	• Interface grouping • VLAN priority (802.1p)
Management	• Local and remote access to settings through TELNET/WEB (HTTP) • Multilingual web-based interface for configuration and management • Support of D-Link Assistant application for Android and iPhone smartphones • Firmware update via web-based interface • Automatic notification on new firmware version • Saving/restoring configuration to/from file • Support of logging to remote host • Automatic synchronization of system time with NTP server and manual time/date setup • Ping function • TR-069 client
Wireless Module Parameters
Standards	• IEEE 802.11b/g/n
Frequency range	• 2400 ~ 2483.5MHz
Wireless connection security	• WEP • WPA/WPA2 (Personal/Enterprise) • МАС filter • WPS (PBC/PIN)
Advanced functions	• WMM (Wi-Fi QoS) • Information on connected Wi-Fi clients • Advanced settings
Wireless connection rate	• IEEE 802.11b: 1, 2, 5.5, and 11Mbps • IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, and 54Mbps • IEEE 802.11n: from 6.5 to 300Mbps (from MCS0 to MCS15)
Transmitter output power The maximum value of the transmitter output power depends upon the radio frequency regulations applied in your country	• 802.11b (typical at room temperature 25 °C) 16dBm (+/-1dB) • 802.11g (typical at room temperature 25 °C) 14dBm (+/-1dB) • 802.11n (typical at room temperature 25 °C) 14dBm (+/-1dB)
Receiver sensitivity	• 802.11b (typical at room temperature 25 °C) -86dBm • 802.11g (typical at room temperature 25 °C) -72dBm • 802.11n (typical at room temperature 25 °C) HT20 -67dBm HT40 -65dBm
Physical Parameters
Dimensions	• 160 x 59 x 121 mm (6.3 x 2.32 x 4.76 in)
Weight	• 215 g (0.47 lb)
Operating Environment
Power	• Output: 12V DC, 1A
Temperature	• Operating: from 0 to 40 °C • Storage: from -20 to 70 °C
Humidity	• From 5% to 95% (non-condensing)
