DP-G310EOL EOS

Single-Port Wireless USB Print Server

Description

Flexible Installation
The DP-G310 is ideal for both the large office and the small   WEP (Wired Equivalent Privacy) encryption protocol. Data workgroup. For homes and SOHO with just one printer to  privacy mechanism is based on a shared key algorithm, as share, this print server offers a single port and saves you the  described in the wireless LAN standard.cost. For the large office with many computer users and several printers scattered at different places, you can plug one print server to each of these printers to share them on the network.

Ethernet and Wireless Interfaces
Two LAN interfaces are provided on this print server: (1) a 10/100BASE-TX Ethernet port and (2) a high-speed 802.11g wireless LAN interface supporting up to 54Mbps network data transfer. This flexibly allows both Ethernet users and wireless users to print files through the print server.

Wireless Network Security
The DP-G310 provides the necessary security for wireless users, using the user-selectable 64/128-bit industry-standard WEP (Wired Equivalent Privacy) encryption protocol. Data privacy mechanism is based on a shared key algorithm, as described in the wireless LAN standard.

Remote Printing Support
The DP-G310 supports IPP (Internet Printing Protocol), so you can set an IP address in the print server for remote users to output print files to the printers from remote places.

Setup & Access Control
Setting up the print server can be done from any workstation running a web browser. In addition, Windows-based menu-driven program allows you to do administration jobs and set access control. Access to your network printer can be control by setting up a list of MAC addresses of user computers allow to print files. SNMP and latest MIB-II MIBs are built into the print server, allowing you to manage
this device on an SNMP standard-based network

General features

Printer Port
High-speed USB 2.0 port

LAN Interfaces
- 802.11g wireless LAN
- 10/100BASE-TX port

Network Protocols
- Transport Protocols: TCP/IP, NetBEUI, AppleTalk/EtherTalk
- TCP/IP Protocols: BOOTP, SNMP, Telnet, TFTP, FTP, LPD, RARP,

DHCP, IPP
- IPP (Internet Printing Protocol)

Management and Diagnostics
- Standard: SNMP
- MIBs: MIB-II (RFC 1213)
- Mac OS RendezVous

IP Assignment
- Manual
- Automatic through DHCP, BOOTP or RARP server

Configuration Reset
Reset button

Diagnostic LED Indicators
- Power
- Ethernet (Link/Act)
- WLAN
- USB

Wireless LAN Standards
- 802.11g
- 802.11b

Data Rates
- 802.11g: up to 54Mbps (6/9/12/18/24/36/48/54Mbps)
- 802.11b: up to 11Mbps (1/2/5.5/11Mbps)

Transmission Technology
DSSS

RF Frequency Range
2.4 to 2.4835GHz

Operating Channels
- 1 to 11 channels (FCC)
- 1 to 13 channels (ETSI)

Data Modulation Type
DBPSK, DQPSK, CCK, OFDM

Antenna
2dBi Gain external dipole antenna

Transmit Output Power
16dBm (typical)
Receive Sensitivity (for 802.11b)
(typically @PER < 8% packet size 1024 @ 250C +/- 50C)
- 11Mbps (CCK): -82 dBm
- 5.5Mbps (CCK): -86 dBm
- 2Mbps (QPSK): -90 dBm
- 1Mbps (BPSK): -90 dBm
Receive Sensitivity (for 802.11g)
(typically @PER < 8% packet size 1024 @ 250C +/- 50C)
- 54Mbps (OFDM): -66 dBm
- 48Mbps (OFDM): -64 dBm
- 36Mbps (OFDM): -70 dBm
- 24Mbps (OFDM): -72 dBm
- 18Mbps (OFDM): -80 dBm
- 12Mbps (OFDM): -84 dBm
- 9Mbps (OFDM): -86 dBm
- 6Mbps (OFDM): -88 dBm

Operating Range *
- Indoors: 100 meters
- Outdoors: 400 meters
* Environmental factors may adversely affect range

Security
WEP 64/128-bit data encryption (user-selectable)

O.S. Support
Environmental & Physical
- Windows 98, ME, 2000, XP
- MacOS EtherTalk
- Unix
- NetWare 5.0 or above (Native NDS)
- lpd

Certificates

Order info

DP-G310 Single-Port Wireless USB Print Server

Pictures

DP-G310

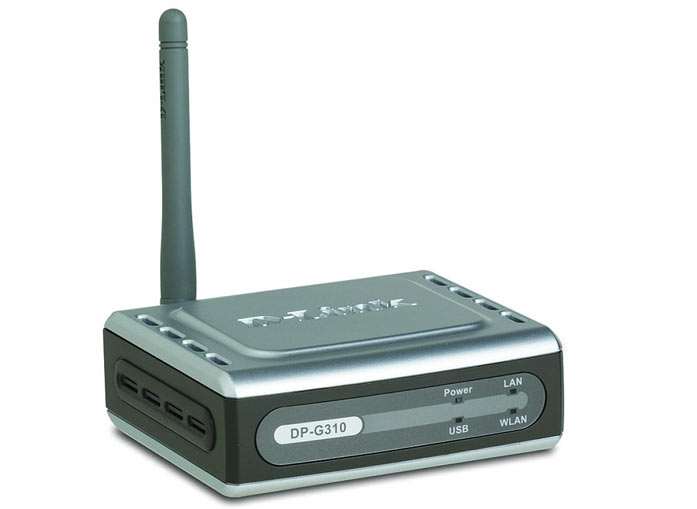

Front view
