DFE-560FX

Single Port 100Base-X SFP PCI Express Adapter

Description

The DFE-560FX PCI Express Fast Ethernet Network Adapter offers reliable fiber network connectivity by adding a SFP port to your PC. This adapter is plugged into a PCI Express slot of your workstation or server and allows to upgrade it to a fiber network using the compatible SFP transceiver.

802.1Q VLAN Tagging
The DFE-560FX supports the onboard screening of 802.1Q VLAN Tagged Ethernet frames, allowing to create several subnets for each server and isolate devices within each VLAN from the other part of a network for security enhancement and traffic management.

Advanced Features
With support of 802.3x Flow Control the DFE-560FX can easily interoperate with your current networking equipment. The DFE-560FX also supports 802.1p Priority Encoding.

General features

Chipset
• RTL8106E
• IP102GA

Interfaces
• One 100Base-X SFP port

Installation slot
• PCI Express x1/x4/x8/x16

LEDs
• Activity

Standards and Functions
• IEEE 802.3u 100Base-FX
• 802.3x Flow Control
• PCI Express 1.1 compliant
• 802.1p Priority Encoding
• 802.1Q VLAN Tagging

Duplex Mode
• 200 Mbps (full-duplex)
• 100 Mbps (half-duplex)

OS Support
• Microsoft Windows 10, 8.x, 7
• Microsoft Windows Server 2019, 2016, 2012, 2008 R2
• Linux 2.6.x (up to 4.x)

Physical Parameters
Dimensions
• 74 x 55 mm

Bar Dimensions
• 120 x 22 mm

Weight
• 38 g

Temperature
• Operating: 5 to 50 °C
• Storage: -25 to 70  °C

Humidity
• 20% to 80% non-condensing

Certificates

Order info

DFE-560FX/B1А  Single Port 100Base-X SFP PCI Express Adapter

Pictures

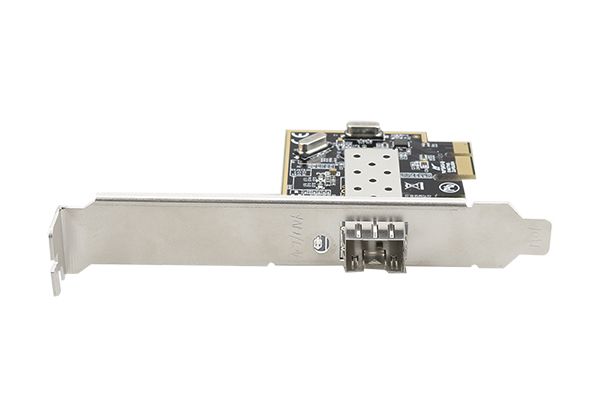

DFE-560FX/B1

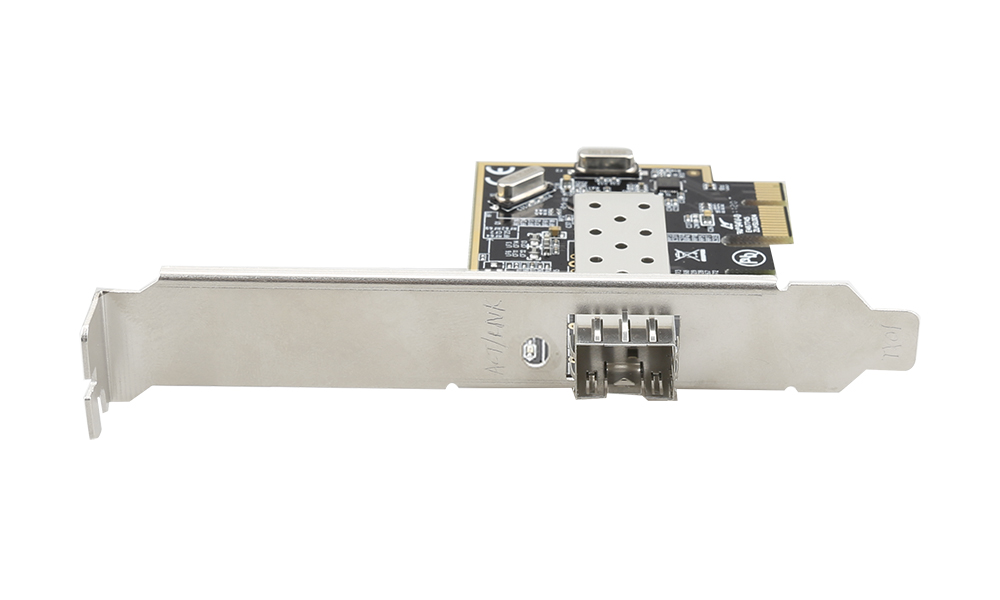

Front view

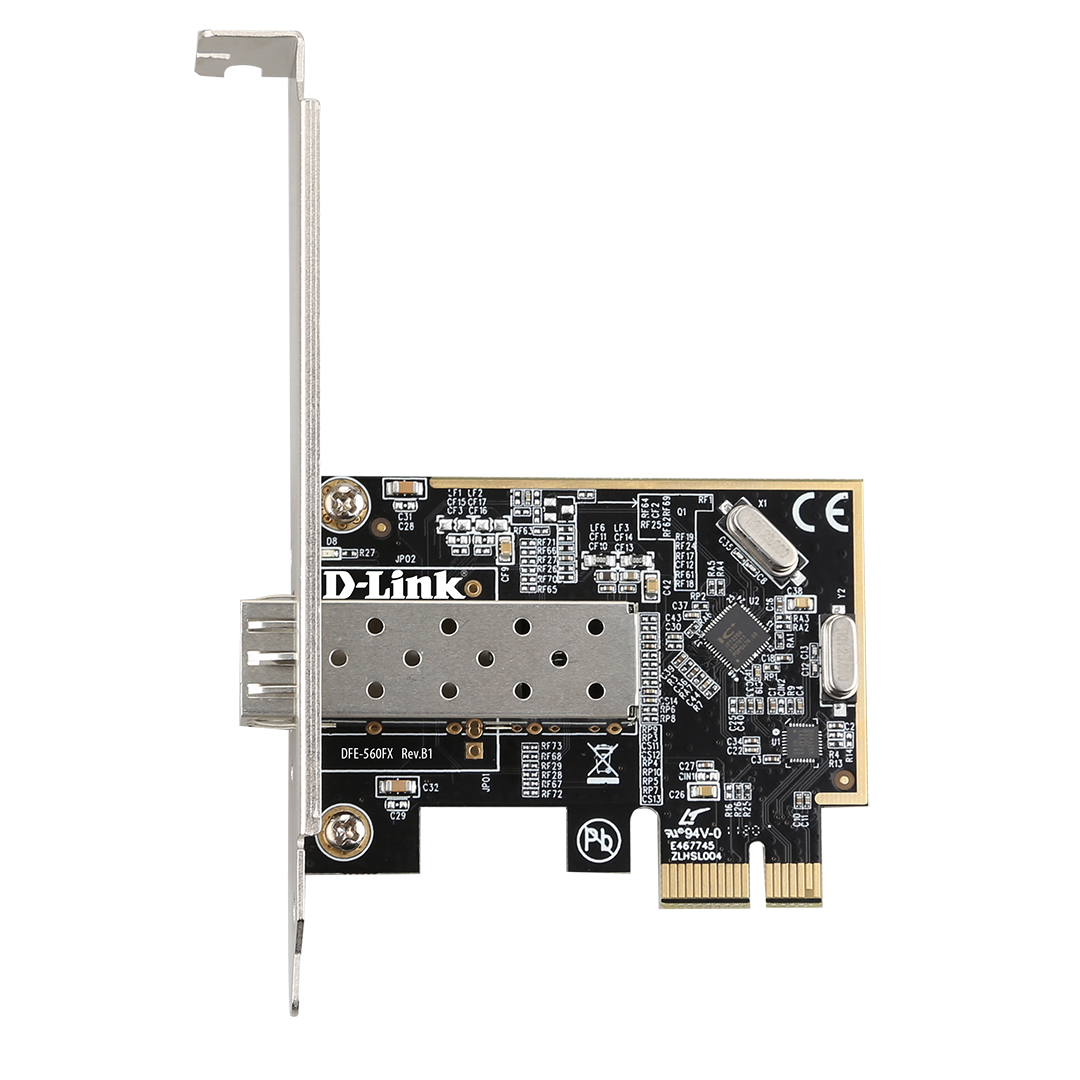

Top view
