DVG-N5402GProject
Wireless N300 Gigabit Router with 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and USB Port
Description
Voice
The VoIP router is equipped with two FXS ports which allow connection of analog phones for calls via Internet and one PSTN (lifeline) port used to connect to the local exchange network.
USB Port
The router is equipped with a USB port for connecting a USB modem, which can be used to establish connection to the Internet. In addition, to the USB port of the router you can connect a USB storage device, which will be used as a network drive, or a printer.
Wireless Interface
Using the DVG-N5402G device, you are able to quickly create a high-speed wireless network at home or in your office, which lets computers and mobile devices access the Internet virtually anywhere (within the operational range of your wireless network). The router can operate as a base station for connecting wireless devices of the standards 802.11b, 802.11g, and 802.11n (at the wireless connection rate up to 300Mbps).
The router supports multiple functions for the wireless interface: several security standards (WEP, WPA/WPA2), MAC address filtering, WPS, WMM.
In addition, the device is equipped with a button for switching the Wi-Fi network off/on. If needed, for example, when you leave home, you can easily switch the router’s WLAN by pressing the button, and devices connected to the LAN ports of the router will stay online.
Security
The wireless router DVG-N5402G includes a built-in firewall. The advanced security functions minimize threats of hacker attacks, prevent unwanted intrusions to your network, and block access to unwanted websites for users of your LAN.
Easy Configuration and Update
You can configure the settings of the wireless router DVG-N5402G via the user-friendly web-based interface (the interface is available in several languages).
Now you can simply update the firmware: the router itself finds approved firmware on D-Link update server and notifies when ready to install it.
General features
|
Hardware
|
|
|
Interfaces
|
• 10/100/1000BASE-T WAN port
• 4 10/100/1000BASE-T LAN ports
• 2 RJ-11 FXS ports
• 1 RJ-11 PSTN (lifeline) port
• USB 2.0 port
|
|
LEDs
|
• POWER
• ALARM
• REGISTER
• WLAN
• WAN
• 4 LAN LEDs
• USB
• 2 PHONE LEDs
• LINE
• WPS
|
|
Buttons
|
• ON/OFF button to power on/power off
• RESET button to restore factory default settings
• WPS button to set up secure wireless connection and enable/disable wireless network
|
|
Antenna
|
• Two external non-detachable antennas (5dBi gain)
|
|
MIMO
|
• 2 x 2
|
|
Power connector
|
• Power input connector (DC)
|
| Phone | |
|
General SIP Features
|
• Individual account per port
• Invite with Challenge
• Register by IP address or domain name of SIP server
• Backup proxy support
• Support of DHCP option 120
• RFC3986 SIP URI format support
• Outbound proxy support
• STUN client
• NAT keep-alive
• Call types: voice/modem/fax
• User programmable Dial Plan
• Manual peer table (P2P)
• E.164 Numbering, ENUM support
|
|
Call Features
|
• Direct IP-to-IP сall without SIP proxy
• Lifeline (PSTN-backup)
• PSTN call by prefix
• Call hold/retrieve
• Call awaiting
• Forwarding (unconditional, busy, no answer)
• Do Not Disturb
• Speed dialing
• Phone book
• Hotline
• Vertical service codes
• Intercom (internal calls without SIP server)
|
|
Voice Features
|
• Codecs: G.711 a/μ-law, G.729A, G.726, G.722, G.723.1
• DTMF detection and generation
• In-band DTMF, out-of-band DTMF (RFC2833, SIP-INFO)
• Comfort Noise Generation (CNG)
• Voice Activity Detection (VAD)
• Dynamic Jitter Buffer
• Call progress tone generation (FXS)
• DTMF/PULSE dial support
• Caller ID detection and generation
• T.30 FAX bypass to G.711, T.38 Real Time FAX Relay
• Adjustable Flash Time
• Volume control (speaker/microphone)
|
| Software | |
|
WAN connection types
|
• LTE
• 3G
• PPPoE
• Static IP / Dynamic IP
• PPPoE + Static IP
• PPPoE + Dynamic IP
|
|
Network functions
|
• DHCP server/relay
• DNS relay
• Dynamic DNS
• IGMP Proxy
• RIP
• Support of UPnP IGD
• Support of VLAN
• WAN ping respond
• Support of SIP
• Support of RTSP
|
|
Firewall functions
|
• Network Address Translation (NAT)
• Stateful Packet Inspection (SPI)
• IP filter
• MAC filter
• URL filter
• Prevention of ARP and DDoS attacks
• Virtual servers
|
|
VPN
|
• IPSec/PPTP/L2TP/PPPoE pass-through
|
|
USB interface functions
|
• USB modem
Auto connection to available type of supported network (4G/3G/2G)1
Enabling/disabling PIN code check, changing PIN code2
• USB storage
File browser
Print server
Access to storage via accounts
Built-in Samba server
Built-in FTP server
Built-in Transmission torrent client; uploading/downloading files from/to USB storage
|
|
Management
|
• Local and remote access to settings through TELNET/WEB (HTTP)
• Multilingual web-based interface for configuration and management
• Firmware update via web-based interface
• Automatic notification on new firmware version
• Saving/restoring configuration to/from file
• Support of remote logging
• Automatic synchronization of system time with NTP server and manual time/date setup
• Ping function
• Traceroute utility
• TR-069 client
|
| Wireless Module Parameters | |
|
Standards
|
• IEEE 802.11b/g/n
|
|
Frequency range
|
• 2400 ~ 2483.5MHz
|
|
Wireless connection security
|
• WEP
• WPA/WPA2 (Personal/Enterprise)
• МАС filter
• WPS (PBC/PIN)
|
|
Advanced functions
|
• WMM (Wi-Fi QoS)
• Managing connected stations
• Advanced settings
|
|
Wireless connection rate
|
• IEEE 802.11b: 1, 2, 5.5, and 11Mbps
• IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, and 54Mbps
• IEEE 802.11n (2.4GHz/5GHz): from 6.5 to 300Mbps (from MCS0 to MCS15)
|
|
Transmitter output power
The maximum value of the transmitter output power depends upon the radio frequency regulations applied in your country
|
• 802.11b (typical at room temperature 25 °C)
15dBm at 1, 2, 5.5, 11Mbps
• 802.11g (typical at room temperature 25 °C)
15dBm at 6, 9, 12, 18, 24, 36, 48, 54Mbps
• 802.11n (typical at room temperature 25 °C)
HT20/HT40
15dBm at MCS0~15
|
|
Receiver sensitivity
|
• 802.11b (typical at PER = 8% at room temperature 25 °C)
-85dBm at 1Mbps
-83dBm at 2Mbps
-81dBm at 5.5Mbps
-79dBm at 11Mbps
• 802.11g (typical at PER = 10% at room temperature 25 °C)
-85dBm at 6Mbps
-84dBm at 9Mbps
-82dBm at 12Mbps
-80dBm at 18Mbps
-77dBm at 24Mbps
-73dBm at 36Mbps
-69dBm at 48Mbps
-68dBm at 54Mbps
• 802.11n (typical at PER = 10% at room temperature 25 °C)
2.4GHz, HT20
-85dBm at MCS0/8
-82dBm at MCS1/9
-80dBm at MCS2/10
-77dBm at MCS3/11
-73dBm at MCS4/12
-69dBm at MCS5/13
-68dBm at MCS6/14
-67dBm at MCS7/15
2.4GHz, HT40
-82dBm at MCS0/8
-79dBm at MCS1/9
-77dBm at MCS2/10
-74dBm at MCS3/11
-70dBm at MCS4/12
-66dBm at MCS5/13
-65dBm at MCS6/14
-64dBm at MCS7/15
|
|
Modulation schemes
|
• 802.11b: DQPSK, DBPSK, DSSS, CCK
• 802.11g: BPSK, QPSK, 16QAM, 64QAM с OFDM
• 802.11n: BPSK, QPSK, 16QAM, 64QAM с OFDM
|
|
Physical Parameters
|
|
|
Dimensions
|
• 224 x 171 x 50 mm (8.82 x 6.73 x 1.97 in)
|
|
Weight
|
• 480 g (1.06 lb)
|
|
Operating Environment
|
|
|
Power
|
• Output: 12V DC, 1.5A
|
|
Temperature
|
• Operating: from 0 to 40 °C
• Storage: from -20 to 65 °C
|
|
Humidity
|
• Operating: from 10% to 90% (non-condensing)
• Storage: from 5% to 95% (non-condensing)
|
|
Delivery Package
|
|
|
• Router DVG-N5402G
• Power adapter DC 12V/1.5A
• Ethernet cable (CAT 5E)
• Two RJ-11 telephone cables
• “Quick Installation Guide” (brochure)
|
|
| Supported USB modems3 | |
|
GSM
|
• Alcatel X500
• D-Link DWM-152C1
• D-Link DWM-156A6
• D-Link DWM-156A7
• D-Link DWM-156C1
• D-Link DWM-157B1
• D-Link DWM-157B1 (Velcom)
• D-Link DWM-158D1
• Huawei E150
• Huawei E1550
• Huawei E156G
• Huawei E160G
• Huawei E169G
• Huawei E171
• Huawei E173 (Megafon)
• Huawei E220
• Huawei E352 (Megafon)
• ZTE MF112
• ZTE MF192
• ZTE MF626
• ZTE MF627
• ZTE MF652
• ZTE MF667
• ZTE MF668
• ZTE MF752
|
|
CDMA
|
• Airplus MCD-650
• Airplus MCD-800
• AnyDATA ADU-300A
• AnyDATA ADU-500A
• AnyDATA ADU-510A
• Huawei EC306
• ZTE AC5710
• ZTE AC5730
|
|
LTE
|
• Huawei E3372
• Huawei E367
• Huawei E392
• Megafon M100-1
• Megafon M100-2
• Megafon M150-2
• Yota LU-150
• Yota WLTUBA-107
|
1For LTE and GSM USB modems.
2For GSM USB modems only.
3The manufacturer does not guarantee proper operation of the router with every modification of the firmware of USB modems.
Certificates
Order info
DVG-N5402G Wireless N300 Gigabit Router with 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and USB Port
Pictures

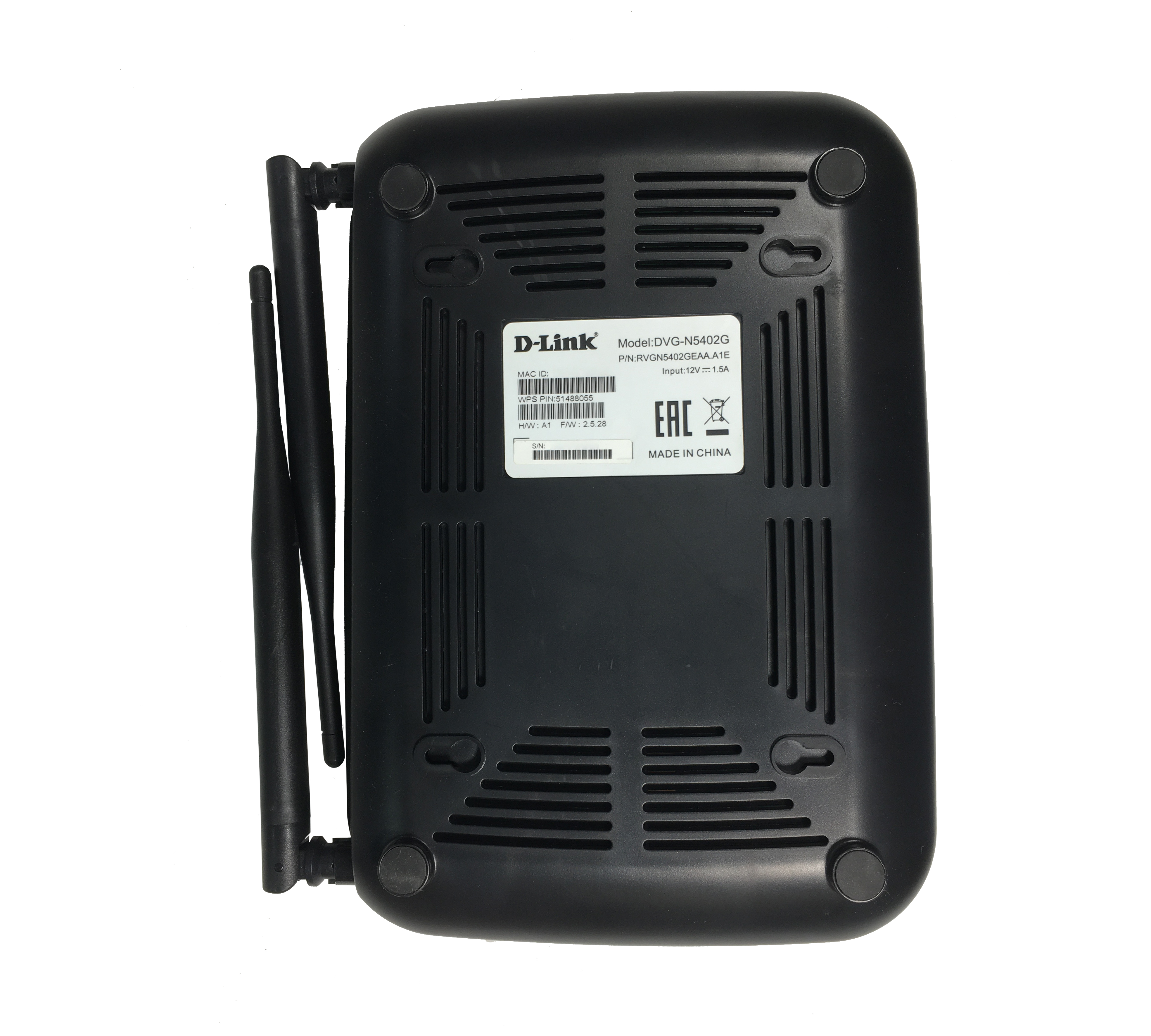

DVG-N5402G/A1
