DCS-4701EEOL EOS

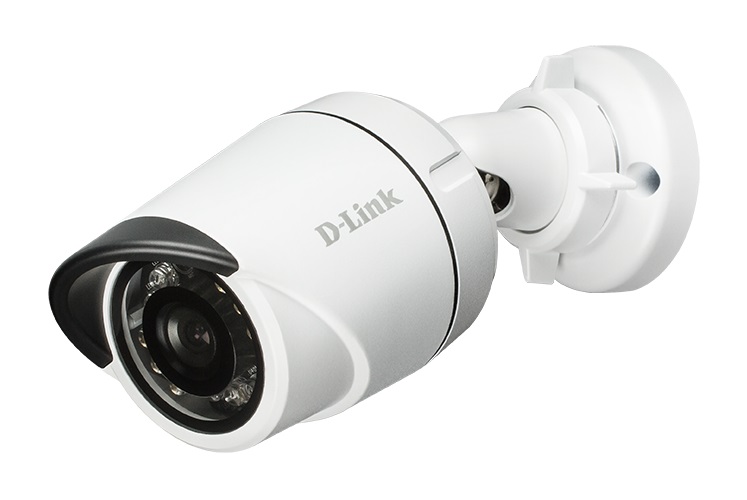

Vigilance HD Outdoor PoE Mini Bullet Camera
Description
The D-Link DCS-4701E Vigilance HD Outdoor PoE Mini Bullet Camera is a high-definition professional surveillance and security solution suitable for small, medium, and large enterprises. The camera uses a high-sensitivity 2 megapixel (DCS-4701E rev. Р’) / 1.3 megapixel (DCS-4701E rev. A) progressive scan CMOS sensor to deliver truly superior quality video under a wide range of lighting conditions. The all-in-one rugged design makes this camera ideal for reliable deployment in surveillance applications without the need for additional accessories.
High-Quality Streaming & Recording
To maximize bandwidth efficiency and improve image quality, the DCS-4701E provides real-time video compression using the H.265, H.264 and MJPEG (DCS-4701E rev. Р’) / H.264 and MJPEG (DCS-4701E rev. A) codecs for simultaneous video streaming and recording. Video resolutions of up to 1920 x 1080 provide clear details and noise reduction that improves video quality that may be useful in cases when forensic image analysis is required for evidence. Additional support for motion detection and event management
features allow for implementation in a wide variety of surveillance applications such as monitoring public areas to detect incidents and to coordinate responses, to enforce access control to restricted areas, to deter criminal activity, or to monitor inventory.
Versatile Monitoring in All Environments
In low-light situations, the IR-cut filter automatically slides out of the way to use all available light. The DCS-4701E also has built-in IR LED illuminators with a 30-meter range, allowing the camera to provide outstanding performance even in complete darkness. IP66 certified housing ensures the camera is completely protected from dust and water. These features work together to give you a reliable surveillance camera capable of monitoring indoors or outdoors 24/7 in a variety of environments.
Convenient Connectivity
The DCS-4701E has a built-in 802.3af compliant PoE module that eases installation by providing power and networking connectivity with a single cable, reducing the need to drill holes or lay additional cabling.
Robust Management Software
The Vigilance HD Outdoor PoE Mini Bullet Camera includes D-ViewCam, a complete surveillance software package that enables you to view, manage, and record from up to 32 cameras on a single computer from a central location. Recordings and e-mail alerts can be triggered through motion detection, keeping administrators informed of any unusual activity.
General features
Device Interfaces
• 10/100Base-TX Ethernet port with PoE (802.3af) Class 2
Camera Hardware Profile
• 1/2.7 2 Megapixel progressive CMOS sensor
• 30 meter IR illumination distance
• Minimum illumination:
Color (Day Mode), IR LEDs off: 0.1 lux
B/W (Night Mode), IR LEDs off: 0.05 lux
B/W (Night Mode), IR LEDs on: 0 lux
• Built-in Infrared-Cut Removable (ICR) Filter module
• 10x digital zoom
• Minimum object distance 0.5 m
• Focal length: 3.6 mm
• Aperture: F1.8
• Angle of view:
(H) 90В°
(V) 50В°
(D) 104В°
Camera Housing
• IP66 compliant weatherproof housing
• Wire-in bracket
Image Features
• Configurable image size, quality, frame rate, and bit rate
• Time stamp and text overlays
• Configurable motion detection windows
• Configurable privacy mask zones
• Configurable exposure time, brightness, saturation, contrast, sharpness
• Wide Dynamic Range (WDR)
• 3D filtering
Video Compression
• Simultaneous H.265/H.264/MJPEG format compression
• H.265/H.264/MJPEG multicast streaming
• JPEG for still images
Video Resolution
• 16:9 - 1920 x 1080, 1280 x 720, 800 x 448, 640 x 360 up to 30 fps*
• 4:3 - 1440 x 1080, 1280 x 960, 800 x 600, 640 x 480 up to 30 fps*
Network Protocols
• IPv6
• IPv4
• TCP/IP
• UDP
• ICMP
• DHCP client
• NTP client (D-Link)
• DNS client
• DDNS client (D-Link)
• SMTP client
• FTP client
• HTTP/HTTPS
• Samba client
• PPPoE
• UPnP port forwarding
• RTP/RTSP/RTCP
• IP filtering
• Multicast
• SNMP
• ONVIF compliant
Security
• Administrator and user group protection
• Password authentication
• HTTP and RTSP authentication
System Requirements for Web Interface
• Operating system: Microsoft Windows 10/8/7 or Mac OS X 10.9 or higher
• Browser: Internet Explorer 9, Firefox 12-51, 52 ESR, Chrome 42 or higher, Safari 9 or higher
Event Management
• Motion detection
• Event notification and uploading of snapshots/video clips via e-mail or FTP
• Supports multiple SMTP and FTP servers
• Multiple event notifications
• Multiple recording methods for easy backup
Remote Management
• Take snapshots/video clips and save to local hard drive
• Configuration interface accessible via web browser
D-ViewCam System Requirements
• Operating System:
- 32-bit: Microsoft Windows 7 (SP1)/8
- 64-bit: Microsoft Windows 7 (SP1)/8/10/Server 2008 R2/Server 2012
• Web Browser: Internet Explorer 7 or higher
• Protocol: Standard TCP/IP
D-ViewCam Software Functions
• Remote management/control of up to 32 cameras
• Supports all management functions provided in the web interface
• Viewing of up to 32 cameras on one screen
• Scheduled motion triggered, or manual recording options
Physical Parameters
Weight
• 445 grams В± 5%
Dimensions
• 98.1 x 65 x 65 mm
Power
• 12 V DC / 1.5 A power adapter
• IEEE 802.3af PoE Class 2
Power Consumption
• Max. 3.2 watts / 3.1 watts (PoE) В± 5%
Temperature
• Operating: -40В° to 50В°C
• Storage: -20В° to 70В°C
Humidity
• Operating: 20% to 80% non-condensing
• Storage: 5% to 95% non-condensing
Certifications
• CE
• CE LVD
• FCC
• C-Tick
* Frame rates when streaming video may vary depending on network conditions and method used.
Certificates
Order info
DCS-4701E Vigilance HD Outdoor PoE Mini Bullet Camera
