DPH-200SE

IP Phone with colour LCD display, 1 10/100Base-TX PoE WAN port and 1 10/100Base-TX LAN port
Recommended

Description

DPH-200SE IP Phones are mainly designed for the hotels. These phones are equipped with 1 10/100Base-TX WAN port with PoE and 1 10/100Base-TX LAN port. A Power over Ethernet (PoE) port allows you to connect the DPH-2000SE to your network and power it through a single cable, simplifying deployment and doing away with the need for a nearby power outlet. Beyond this, users PC can be connected to this phone instead of LAN directly. A color LCD display on the panel provides direct visual interface with user. User can use keypad/LCD or Web browser to configure this phone. DPH-200SE supports one SIP account, G.722 codec, SRTP and many other useful functions including call transfer, hold and redial.

General features


Hardware
• SDRAM: 16MB
• FLASH: 8MB

Network interface
• WAN Port 10/100Base-TX with PoE support for LAN
• LAN Port 10/100 Base-TX for PC
• Handset RJ9
• USB port for mobile devices charge

LCD
• Color LCD display 3.5 inch
• Resolution: 480x320

Keypad Features
• 6 Soft keys for doing more functions
• Hold
• Transfer
• Redial
• MWI
• Speaker
• 12 numeric keys with star & pound key
• Mute
• Vol -/Vol +

Power Plug
• DC power plug

Software
• VxWorks OS

Voice Codec
• G.711a/u
• G.729A/B
• G.723.1 high/low
• G.722
• G.726-32

Advance Voice Quality Feature
• Support HD voice
• DTMF: In-band, RFC 2833 and SIP INFO
• Acoustic Echo Cancellation: hands-free can support 96ms
• Voice Active Detection (VAD)
• Comfort Noise Generation (CNG)
• Silence Suppression
• Packet Lost Concealment (PLC)
• Jitter Buffer

Signal, Media & Network Protocols
• SIP 2.0 RFC 3261
• SIP support 1 SIP server, and backup SIP proxy servers
• SIP UDP/TCP/TLS support
• SIP support SIP domain, SIP authentication (none, basic,  MD5), DNS name of server, Peer to Peer/IP Call

Supplementary Call Feature
• Call Transfer (Blind, Attend and Early Attended Transfer)
• Call Hold
• Call Waiting
• Redial
• Call completion
• MWI
• Flexible dial plan
• Barring function for outgoing calls
• Do Not Disturb
• Auto Answer
• Anonymous Call/Rejection
• Dial without registration
• Call logs with missed/incoming/outgoing calls
• DTMF hidden
• Action URL/Active URI
• Multicast
• Web dial
• Emergency call

Security
• Bridge mode
• Static IP, DHCP, PPPoE
• 802.1X
• VPN: L2TP (Basic Unencrypted)
• OpenVPN (Attention! This function is not available with the devices that shipped to the territory of the Customs Union states.)
• VLAN
• QoS

User interface/network management
• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR069
• Multi languages displayed (Web)
• Web-based Packet Dump
• Configuration Export/Import
• Firmware Upgrade
• Syslog

Dimensions
• 213 x 170 x 130 mm

Power
• Power Adaptor (not included)
• Output: DC 5V/1А
• Ethernet cable (PoE) 802.3af

Power Consumption
• Typical: 2.5 Watt (Standby)
• Max.: 2.8 Watt (Talking)

Temperature
• Operating: 0° to 40°C

Humidity
• Operating: 10% to 65 % (no-condensing)

Certifications
• FCC
• CCC
• CE
• RoHS


Certificates

Order info

DPH-200SE   IP Phone with colour LCD display, 1 10/100Base-TX PoE WAN port and 1 10/100Base-TX LAN port

Pictures

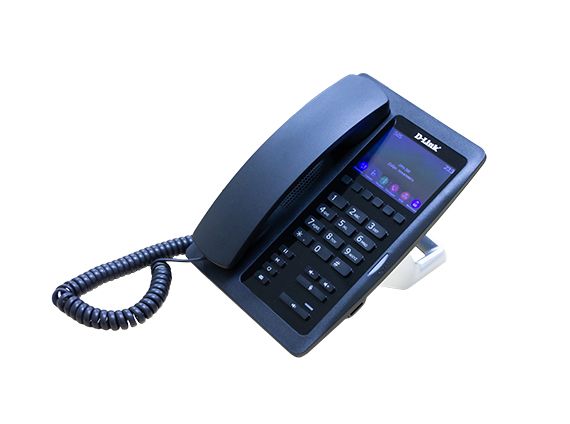

DPH-200SE
Left side view
View from the right
Front view
Top view
