DEM-314GT
1000Base-LHX Single-Mode SFP transceiver (up to 50 km)
Description
The DEM-314GT Gigabit SFP fiber transceiver is external transceiver designed for insertion in SFP (Small Form-Factor Pluggable) slot of network device for transmission and reception of data signals on the fiber cables. This transceiver provides high-speed and reliable long-distance (up to 50 km) data transfer.
The DEM-314GT transceiver uses standard duplex LC connector for fiber cable connection. It conforms to industry standards and is interoperable with D-Link Gigabit switches. All D-Link transceivers are hot-pluggable. Hot-swap capability allows network administrators to plug or unplug it from the SFP slot without having to turn off the power of the connected device.
General features
|
General features |
|
|
Standard |
• IEEE 802.3z 1000Base-LHX
|
|
Wavelength |
• 1550 nm
|
|
Data Rate |
• 1.25 Gbps
|
|
Connector |
• Duplex LC
|
|
Fiber Type |
• 9/125 um Single-mode Fiber
|
|
Maximum Fiber Cable Length |
• 50 km
|
|
Transmit Power Range |
• 0 to -6 dBm
|
|
Receive Power Range |
• -3 to -24 dBm
|
|
Sensitivity |
• -24 dBm
|
|
Supported Features |
• Hot swap
• MSA compliant
• RoHS compliant
|
|
Physical Parameters |
|
|
Power Support |
• 3.3 V
|
|
Supply Current |
• 300 mA
|
|
Temperature |
• Operating: 0° to 70°C
• Storage: -40° to 85°C
|
|
Humidity |
• Operating: 0% to 85%
• Storage: 0% to 85%
|
|
Dimensions |
• 55.9 mm x 13.7 mm x 8.5 mm
|
|
Certificates |
• Class 1 laser: EN 60825-1
• FDA 21 CFR 1040.10 и 1040.11
|
Certificates
Order info
DEM-314GT/A1A 1000Base-LHX Single-Mode SFP transceiver (up to 50 km)

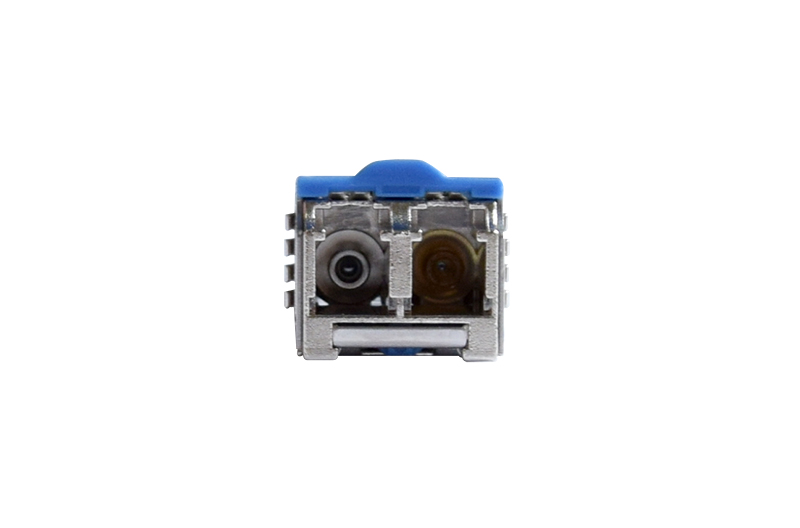

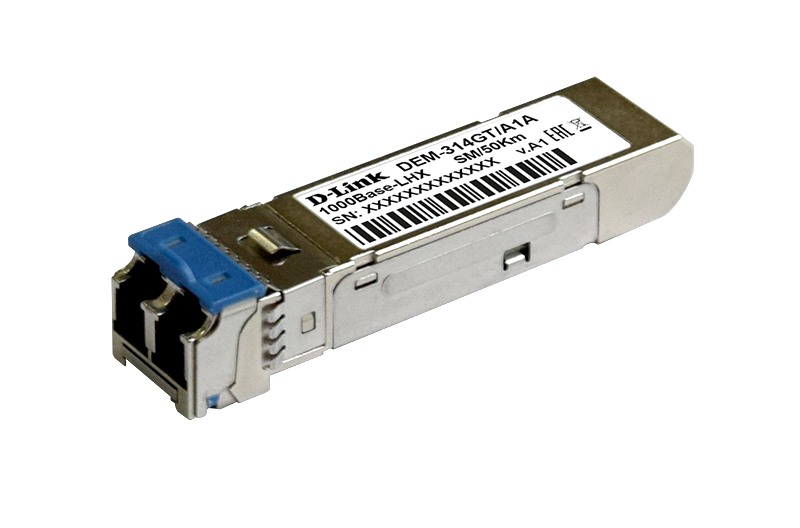

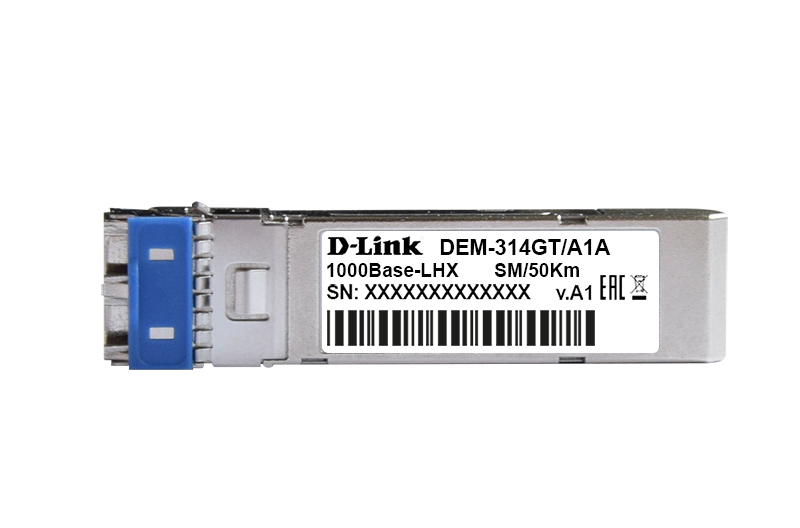

Pictures
