DIR-412EOL

Wireless 802.11g Router with 1-ports 10/100 Base-TX port and USB adapter connection, EVDO/CDMA/HSUDPA/HSDPA/UMTS 3.5G
Where to buy

Description

MAXIMUM PORTABILITY
The D-Link Mobile Wireless Router allows users to access worldwide mobile broadband. Simply insert a compatible 3.5G USB adapter and share your 3.5G Internet connection through a secure, high-speed wireless network. Enjoy increased speed and range over traditional 802.11g/b standards2 thanks to the latest Wireless N 150 technology. A 10/100 Ethernet WAN port allows you to attach a DSL /Cable modem as the primary or backup link, while auto-failover ensures an uninterrupted connection by automatically connecting to your 3.5G network whenever the WAN link is lost.

ADVANCED NETWORK SECURITY
The DIR-412 ensures a secure Wi-Fi network through the use of WPA/WPA2 wireless encryption. Simply press the WPS button to quickly establish a secure connection to new devices. The DIR-412 also utilizes dual-active firewalls (SPI and NAT) to prevent potential attacks and intrusions from across the Internet.

SIMPLE TO INSTALL AND USE
The Mobile Wireless Router can be installed quickly and easily almost anywhere. This router is great for situations where an impromptu wireless network must be set up, or wherever conventional network access is unavailable. The DIR-412 can even be installed on buses, trains, or boats, allowing passengers to check e-mail or chat online while commuting.

General features

Compatible mobile Networks
• 1 x EV-DO/CDMA
• HSUPA/HS DPA/UMTS

Standards
• IEEE 802.11g
• IEEE 802.11b
• IEEE 802.3
• IEEE 802.3u

Wireless Security
• 64/128-bit WEP (Wired Equivalent Privacy)
• WPA & WPA2 (Wi-Fi Protected Access)
• WPS (PBC/PIN)

FIREWALL
• Network Address Translation (NAT)
• Stateful Packet Inspection (SPI)
• MAC Address Filtering
• Website Filtering

VPN
• L2TP/PPTP/IPSE C Pass-through
• PPTP/L2TP Connection

Ports
• 1 x Ethernet (RJ-45)
• 1 x USB 2.0

ANTENNA
Internal antenna

LED
• Status Indicators
• Power
• Internet
• Wireless
• Ethernet
• WPS



DIMENSIONS (L x W x H)
122 x 97 x 27 mm

Operating Temperature
0˚ to 40˚C (32˚ to 104˚F)

Operating Humidity
10%-95% (Non-condensing)

POWER
DC 5V/2.5A +/- 5%

Advanced Features
• 3G Modem / Ethernet WAN Backup
• Auto Failover
• QoS Management

CERTIFICATION
• CE
• FCC
• ROHS Compliant

Certificates

Order info

DIR-412   Wireless 802.11g Router with 1-ports 10/100 Base-TX port and USB adapter connection, EVDO/CDMA/HSUDPA/HSDPA/UMTS 3.5G

Pictures

DIR-412

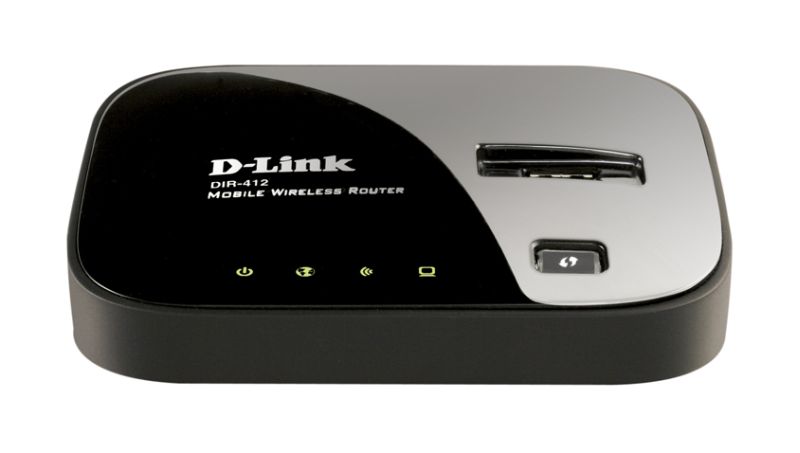

Front view

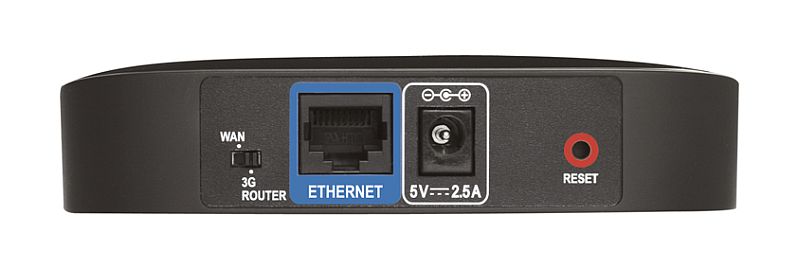

Back view
