ANT24-0802C

Omni-Directional Antenna, 8 dBi

Description

The ANT24-0802C omni-directional antenna with 8 dBi gain operates in 2.4 - 2.5 GHz frequency band and has RP-SMA Plug connector.

The ANT24-0802C antenna connects to a wireless device equipped with detachable antennas, for example access point or router. The 8 dBi ANT24-0802C antenna allows you to extend the 2.4 GHz wireless network coverage and improve the quality of signal reception/transmission. This antenna is designed for indoor use.

General features

Connector
• RP-SMA Plug

Frequency band
• 2.4 GHz - 2.5 GHz

Gain
• 8 dBi

VSWR
• 2.0 : 1 Max.

Polarization
• Linear, vertical

HPBW / horizontal
• 360°

HPBW / vertical
• 24°

Impedance
• 50 Ohms

Power handling
• 10 W

Lightning protection
• DC Ground

Physical Parameters
Dimensions
• Length: 290 mm
• Diameter: 13 mm

Weight
• 0.2 kg

Environmental Conditions
Survival wind speed
• 180 km/hr

Operating Temperature
• -40 to 80 °C

Operating Humidity
• 100% @ 25 °C

Certificates

Order info

ANT24-0802C  Omni-Directional Antenna, 8 dBi

Pictures

ANT24-0802C/B1

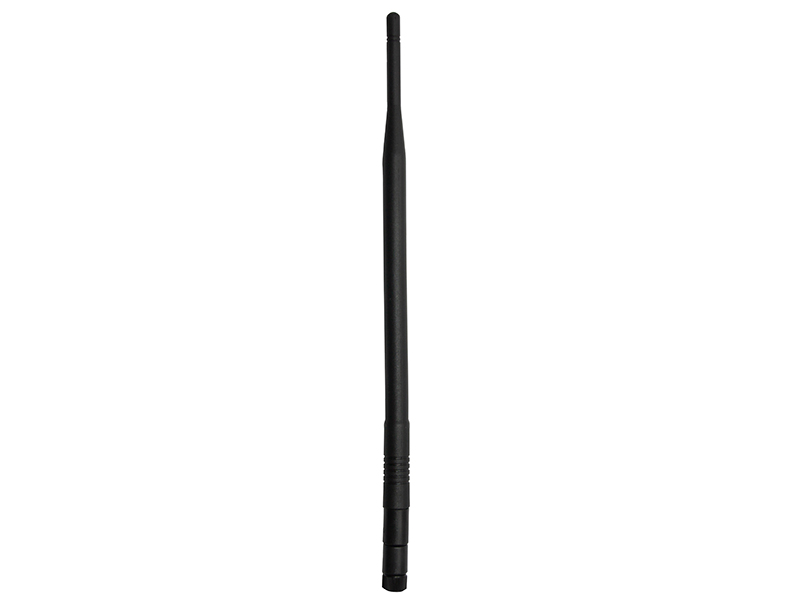

Front view

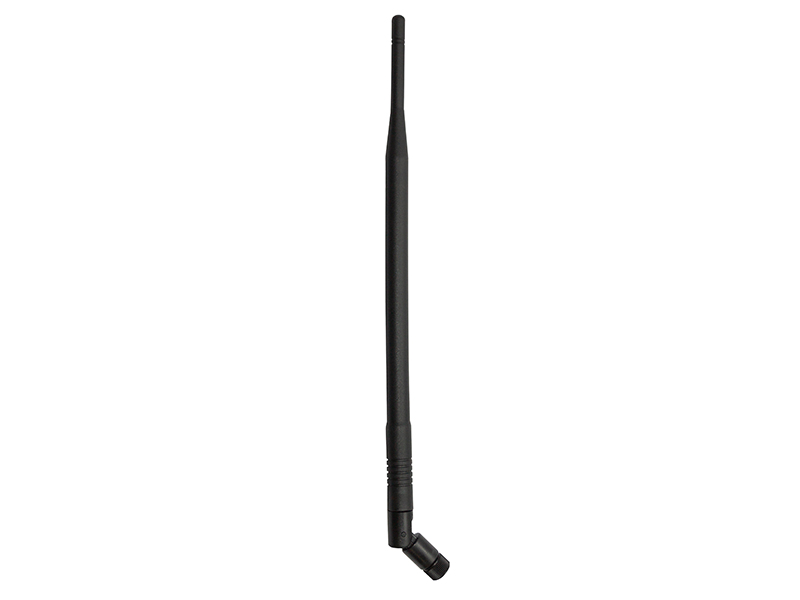

View from the right
