48 10/100/1000Base-T + 4 100/1000Base-T/SFP Combo Ports L2 Management Switch
Where to buy


The DGS-1210 Series Metro Ethernet Switches are a range of switches designed to provide a range of physical interface types, multiple management interfaces, and advanced Layer 2 features. With all of these features combined, the DGS-1210 Series provides a cost-efficient and flexible solution for expanding any business network.
Seamless Integration
The DGS-1210 Series includes a wide range of port and media types, including 10/100/1000BASE-T RJ-45 ports, 100/1000 Mbps GbE/SFP combo ports, and 100/1000 Mbps SFP ports. The DGS-1210-52 features 4 GbE/SFP combo ports, allowing you to choose the most suitable media type for your requirements.
Advanced Features
The DGS-1210 Series comes equipped with a complete lineup of L2 features, including IGMP snooping, port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfers. Network maintenance features include loopback detection and cable diagnostics. Loopback detection significantly speeds up troubleshooting by automatically detecting and shutting down switching loops. The cable diagnostics feature, designed primarily for administrators and customer service representatives, determines the cable quality and quickly discovers errors, allowing for hassle-free diagnostics and maintenance.
Efficient and Resilient Networking
The DGS-1210 Series supports up to 6 kV surge protection on all Ethernet ports, protecting the switch from the damage caused by power surges due to lightning strikes or faulty electrical cabling. The switches also support 802.3ad Link Aggregation, which allows grouping of multiple ports to provide redundancy and load balancing in mission-critical environments. Combined, the two features ensures the reliability of data transmission in your network.
Security & Authentication
The DGS-1210 Series supports Voice VLAN and Auto Surveillance VLAN Mode, which allows voice and video traffic to be automatically identified and handled differently than regular network traffic. Surveillance Mode detects compatible ONVIF cameras and places them in a surveillance VLAN, allowing a single switch to be used for voice, video, and data, removing the need for dedicated hardware and reducing maintenance costs. Surveillance Mode also includes its own Web UI, making surveillance features easily accessible and simplifying management of your surveillance network.
Advanced Access Control
D-Link’s innovative Safeguard Engine helps to protect the switches against traffic flooding caused by malicious attacks. DGS-1210 Series supports 802.1X port-based authentication, allowing the clients to be authenticated through external RADIUS servers. The Access Control List (ACL) feature helps to enhance network security and helps to protect the internal IT network. To help prevent ARP spoofing attacks, the switch uses packet control ACLs to block invalid packets that contain fake ARP messages.

General features

• 48 x 10/100/1000BASE-T
• 4 x 100/1000 Mbps GbE/SFP
Other Port Standards & Functions
• IEEE 802.3i 10BASE-T Ethernet (twisted-pair copper)
• IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
• Auto-negotiation
• IEEE 802.3x Flow Control
• IEEE 802.3z 1000BASE-X Gigabit Fiber
Network Cables
• UTP Cat. 5, Cat. 5e (100 m max.)
• Full/half-duplex for 10/100 Mbps speeds
• Full-duplex for 1000 Mbps speed
Media Interface Exchange
• Auto MDI/MDIX adjustment for all twisted-pair ports
Switching Capacity
• 104 Gbps
Forwarding Method
• Store-and-forward
MAC Address Table Size
• 16K entries
MAC Address Update
• Up to 256 static MAC entries
64-byte Max. Forwarding Rate
• 77.4 Mpps
CPU Memory
• 256 MB
Flash Memory
• 32 MB
• Power (per device)
• Link/Active/Speed (per port)
• 400,667 hours
• 0 dB(A)
Heat Dissipation
• 118.92 TU/hr
Power Input
• AC Input: 100 to 240 V AC, 50/60 Hz
Maximum Power Consumption
• 34.85 W
Standby Power Consumption
• 13.7 W/100 V, 13.9 W/240 V
Dimensions (W x D x H)
• 440 x 210 x 44 mm
• Fanless
• 3.46 kg
Power Surge Protection
• 6KV surge protection
Operating Temperature
• -30 to 50 °C
Storage Temperature
• -40 to 70 °C
Operating Humidity
• 10% to 90% non-condensing
Storage Humidity
• 5% to 90% non-condensing
• FCC class A, CE class A, VCCI, BSMI, CCC
Safety Certifications
L2 Features
• MAC address table: 16K entries
• Spanning Tree Protocols
  - 802.1D STP
  - 802.1w RSTP
  - 802.1s MSTP
• Loopback detection
• Mirroring
  - Support 1 mirroring group
  - Support One-to-One, Many-to-One,
  - Support mirroring based on Tx and Rx
• Link aggregation
  - Compliant with 802.3ad
  - Supports max. 16 groups, 8 ports per group
L2 Multicasting
• IGMP Snooping
  - IGMP v1/v2/v3 snooping, v3 awareness
  - Supports 256 groups
  - VLAN/host-based IGMP snooping fast leave
• MLD Snooping
  - MLD v1, MLD v2
  - Supports 256 groups
• 802.1Q tagged VLAN
• VLAN group
• Max. 256 VLAN groups
• Port-based VLAN
• Asymmetric VLAN
• Port-based Q-in-Q
• ISM VLAN (multicast VLAN)
• Voice VLAN
• Auto surveillance VLAN
• Selective QinQ
L3 Features
• 1 IP interfaces
• IPv6 Neighbor Discovery (ND)
Quality of Service (QoS)
• CoS based on:
  - Switch port
  - DSCP
• Bandwidth control
  - Port-based (ingress, min. granularity 16 Kbps)
• Queue handling
  - Strict priority (SPQ)
  - Weighted Round Robin (WRR)
• 8 outbound queues
Access Control List (ACL)
• ACL based on
  - MAC address
  - IPv4/v6 address
  - DSCP
  - TCP/UDP port
  - Protocol
Authentication, Authorization, and Accounting (AAA)
• 802.1X
  - Port-based access control
• RADIUS accounting
• Authentication for management access
  - Local, RADIUS
• Smart IP-MAC-Port Binding (Smart IMPB)
• ARP Inspection
• DHCP Snooping
• Broadcast/Multicast/Unicast storm control
• D-Link Safeguard Engine
• DoS attack prevention
• Traffic segmentation
Operations, Administration, and Maintenance (OAM)
• Cable diagnostics
• Web-based GUI (IPv4/IPv6)
• Command Line Interface (CLI) through Telnet or SSH
• Telnet Server
• TFTP client
• Command logging
• SNMP v1/v2c/v3
• SNMP traps
• System log
• RMON v1
• BootP/DHCP client
• DHCP auto-configuration
• Text-editable config file
• DHCP relay (IPv4/IPv6)
  - DHCP relay agent/local relay
  - DHCP relay option 82
• LLDP-MED (for PoE models only)
• Dual Image
RFC783, 1350 TFTP
• RFC791 IP
• RFC768 UDP
• RFC793 TCP
• RFC792 ICMPv4
• RFC2463, 4443 ICMPv6
• RFC826 ARP
• RFC951, 1542, 2131 BootP/DHCP Client
• RFC1213 MIB II
• RFC1350 TFTP
• RFC1493 Bridge MIB
• RFC1769 SNTP
• RFC1157, 2570, 2573, 2575, 2576 SNMP MIB
• RFC1442, 1901, 1902, 1903, 1904, 1905, 1906, 1907, 1908, 2578, 3418 SNMPv2 MIB
• RFC1398, 1643, 1650, 2358, 2665 Ether-like MIB
• RFC1321, 2284, 2865, 2716, 3580 Extensible Authentication Protocol (EAP)
• RFC2674 802.1p MIB
• RFC2461, 4861 Neighbor Discovery for IPv6
• RFC2462, RFC4862 IPv6 Stateless Address Auto-configuration (SLAAC)
• RFC2464 IPv6 over Ethernet and definition
• RFC4291 IPv6 Addressing Architecture
• RFC2893, 4213 IPv4/IPv6 dual stack function
• RFC2138, 2139, 2618, 2865 RADIUS Authentication Client MIB
• RFC2475, 2598 CoS
• RFC3164, 3195 System Log
• RFC3411, 3412, 3413, 3414, 3415, 3416, 3417 SNMPv3
• Private MIB


Order info

DGS-1210-52/FL  48 10/100/1000Base-T + 4 100/1000Base-T/SFP Combo Ports L2 Management Switch

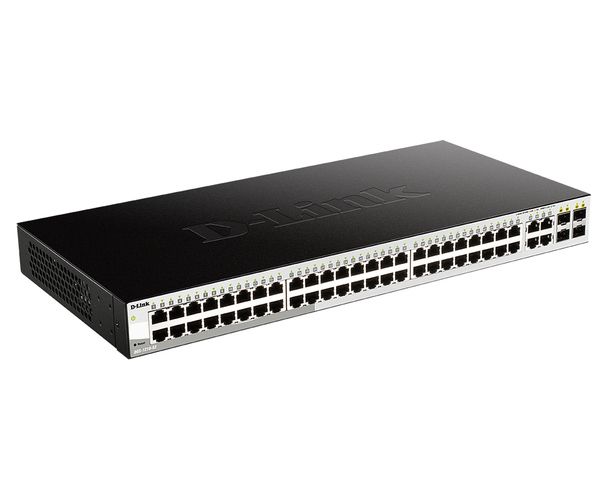

Front view
View from the right
Back view
