DFL-210EOL EOS

NETDEFEND tulemüür väikstele kontoritele (kuni 50 kasutajat)
Kust osta

Kirjeldus

The NetDefend family of Firewall/VPN Security Appliances is D-Link's answer for hardware-based network security. The new D-Link Network Security Firewall (DFL-210) is an easy-to-deploy VPN and firewall solution designed specifically for the Small Office / Home Office (SOHO) market that demands superior performance and security.

Advanced Hardware Features The DFL-210 is a powerful security solution that provides integrated Network Address Translation (NAT), SPI Firewall, advanced content filtering features, IDS protection, bandwidth management, as well as Virtual Private Network (VPN) support. The DFL-210 hardware includes four trusted LAN ports, a WAN port, and a user-configurable DMZ port to support local servers such as e-mail, Web, and FTP. The DMZ port can also be reconfigured as a WAN fail-over port. All of these features conveniently fit into a desktop chassis that can be easily integrated into your network.

Enterprise-class Security To provide enterprise-class network security, the DFL-210 has several flexible firewall features to manage, monitor, and maintain a healthy and secure network. Network management features include: Remote Management, Bandwidth Control Policies, URL/Keyword Blocking, Access Policies, and SNMP. For network monitoring, the DFL-210 supports e-mail alerts, system log, consistency checks, and real-time statistics. These features along with a firmware backup function provide and maintain maximum network performance and security.

VPN Performance For optimal VPN configuration, the DFL-210 has an integrated VPN Client and Server to support almost any required VPN policy. This high-end appliance has a hardware VPN engine to support and manage up to 100 VPN configurations. The DFL-210 can support IPSec, PPTP, and L2TP protocols in Client/Server mode and can handle pass-through traffic as well. Advanced VPN configuration options include: DES/3DES/AES/Twofish/Blowfish/CAST-128 encryption, Manual or IKE/ISAKMP key management, Quick/Main/Aggressive Negotiation modes, and VPN authentication support using either an external RADIUS server or the internal 500-user database.

Configurable User Interface The DFL-210 features an intuitive user interface that can easily be configured via D-Link’s Web-based interface and monitored using the Command Line Interface (CLI). These configuration options can be managed through Admin, Read/Write, or Read-only administrator rights. With these access management levels, any authorized user can easily configure or access the administrative functions of the DFL-210.

With businesses becoming increasingly network-dependent, the need to invest in a reliable security solution is crucial. The D-Link DFL-210 Network Security Firewall offers high return on investment through robust security features, flexible configuration, and maximum network protection for SOHO networks.

*Actual performance may vary depending on network conditions and activated services.

Põhiomadused

   Liidesed

  • 1 x 10/100Base-TX WAN port
  • 1 x 10/100Base-TX DMZ port
  • 4 x 10/100Base-TX LAN porti

    Tootlikkus4
  • Tulemüüri tootlikkus 80 Мbit/s
  • VPN tootlikkus 25 Мbit/s
  • Paralleelsete sessioonide arv 12 000
  • Reeglite arv 500

    Tulemüüri funktsioonid
  • РРРоЕ
  • Läbipaistev režiim
  • NAT, PAT
  • Reeglite seadistamine
  • Application Layer Gateway (ALG)

    Võrgufunktsioonid
  • DHCP klient/server
  • DHCP relay
  • Marsruutimine reeglite järgi
  • IEEE 802.1Q VLAN
  • IP Multicast: IGMP v1-v3, IGMP Snoooping

    Virtuaalne privaatvõrk (VPN)
  • Krüpteerimine (DES / 3DES / AES / Twofish / Blowfish / CAST-128)
  • 100 VPN-tunnelit
  • PPTP/L2TP seerver
  • Hub and Spoke režiim
  • IPSec NAT Traversal

    Juhtimine
  • Konsool
  • Web-liides HTTP, HTTPS
  • Käsurealiides /SSH
  • Tarkvara / konfiguratsiooni uuendamine
  • Konfigureerimisfaili reserveerimine / taastamine
  • Tsentraliseeritud juhtimissüsteem2

    Аutentimine
  • Sisseehitatud andmebaas
  • Väline andmebaas: RADIUS, LDAP
  • IP sidumine MAC-aadressiga
  • XAUTH IPSec autentimiseks

    Registreerimine ja monitooring
  • Sisene registreerimine
  • Väline registreerimine: Syslog seerver
  • Teatised emaili
  • Sündmuste registreerimine
  • SNMP v1, v2c

    Läbilaskeriba juhtimine
  • Traffic Shaping reeglite järgi
  • Garanteeritud läbilaskeriba
  • Мaksimaalne läbilaskeriba
  • Läbilaskeriba prioriteedi järgi

    Intrusion Detection (IDS)
  • Rünnakute signatuuride automaatne uuendamine
  • DoS, DDoS rünnakutest kaitsmine
  • Rünnakutest ennetamine emaili

    Sisu filtreerimine
  • HTTP tüüp: URL, võtmesõnad
  • Skriptide tüüp: Java Cookie, ActiveX, VB
  • Email tüüp: «Must» nimekiri, võtmesõnad

Füüsilised parameetrid

   Toide

  • Väline toiteadapter

    Mõõdud
  • 235 х 162 х 36 mm

    Töötemperatuur
  • 0º kuni 40ºС

    Säilitamistemperatuur
  • -20º kuni 70º С

    Tööniiskus
  • 5% kuni 95% ilma kondensatsioonita

    Elektromagnetiline ühilduvus
  • FCC Class A
  • CE Class A
  • C-Tick

    Turvalisuse sertifikaadid
  • TUV
  • UL
  • LVD (EN60950)

Sertifikaadid

Sidustooted

 DFL-210-IPS-12 – IDS/IDP signatuuri litsensi uuendus (12 kuud)

Pildid

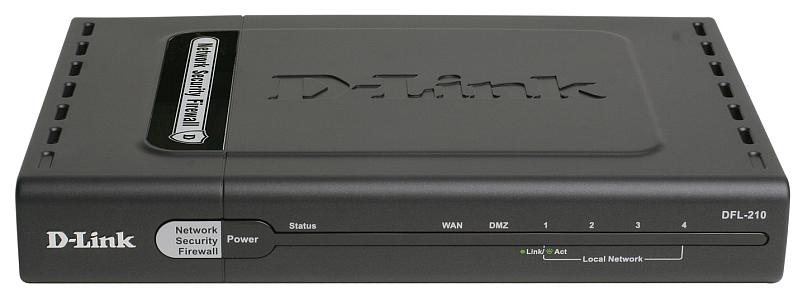

DFL-210
Eestvaade
Tagantvaade
