The cylindrical HD video camera for outdoor use with the support service mydlink
Nereden Alınır


The cylindrical HD video camera for outdoor use DCS-7010L mydlink-enabled service provides round the clock surveillance. The rugged and powerful infrared light makes this camera ideal for outdoor surveillance around the clock.
Day and HD video surveillance
DCS-7010L is equipped with a megapixel sensor and allows you to create crisp, detailed still images and high-quality video at up to 720p HD. EPTZ function, you can zoom, rotate the camera image, and view such a vast area.
Built-in ICR-infrared filter blocks the light of day for better image quality. At night, the ICR-Filter is moved to the side to use a wider range of radiation surveillance, and together with a powerful infrared illumination (up to 10 meters), provides control of the object, even in complete darkness.
The design for outdoor use
Designed specifically for outdoor use, the camera DCS-7010L has an all-weather all-metal casing standard IP-66, which protects the device from dirt and rain. Port Power over Ethernet (PoE) allows the DCS-7010L connect to the network and provide power to the camera via a single Ethernet-cable, simplifying installation and does not require a power outlet nearby.Bracket for wire protects the cables from damage.
Remote access through the service mydlink
The cylindrical HD video camera for outdoor use support service mydlink, allowing you to access and configure the camera remotely, regardless of location. You can view the camera image in real time over the Web-site mydlink, or you can download the mobile app mydlink and monitor directly to your mobile device with iOS or Android. Watch out for the house when you're at work or supervise work in the office when you're on the road, with the help of service mydlink.
Zero Configuration Mechanism
If you have a router that supports the service mydlink, then through the mechanism of Zero Configuration to install and configure DCS-7010L is not difficult. Simply connect the camera to the power adapter, and then - to the mydlink router using Ethernet-cable. The camera will be automatically added to your account. Mydlink service allows even inexperienced users to easily install and use cameras that support this service.
DCS-7010L has a host of features that enhance the surveillance capabilities and make the camera ideal for any situation. Motion Detection function enables the camera to automatically record video and send a notification about an event. For audio input and audio output, you can connect a microphone and speaker, thus providing two-way transmission of sound, and set the camera, for example, at the entrance to the building.
Ready, scalable solution for video surveillance
DCS-7010L is a standalone solution for video surveillance lets you record still images and video to a MicroSD card and does not require a PC or network storage device.
Options to expand video surveillance kit includes software D-ViewCam, providing the opportunity to control up to 32 cameras with a wide range of functions, including viewing of multiple cameras and automatic e-mail alert to suspicious or unusual activity.

Genel Özellikler

Fiziksel Özellikler
Hardware profile camera
• megapixel 1/4-inch CMOS-sensor with progressive scan
• The distance infrared illumination: 10 m
• Minimum illumination: 0 lux with IR lighting
• Built-in ICR-filter
• The audio input and audio output
• 10x digital zoom
• Focal Length: 4.3 mm
• Aperture: F2.0
• Viewing angle:
  • 47 ° (horizontal)
  • 37 ° (vertical)
  • 60 ° (diagonal)
The camera body
• Weatherproof housing (standard IP-66)
• Bracket for cable
Image characteristics
• Setting the image size and quality, frame rate and bit rate
• The timings and paste text
• Customizable windows for motion detection
• Customizable zone private masks
• Set the shutter speed, brightness, color saturation, contrast and sharpness
Video Compression
• Compression formats H.264/MPEG-4/MJPEG
• H.264/MPEG-4 multicast streaming
• JPEG for still images
Video Resolution
• 16:9 - 1280 x 800, 1280 x 720, 800 x 450, 640 x 360, 480 x 270, 320 x 176, 176 x 144 and 30 frames / s ¹
• 4:3 - 1024 x 768, 800 x 600, 640 x 480, 480 x 360, 320 x 240, 176 x 144 and 30 frames / s ¹
Audio Support
• G.726
• G.711
Interfaces to external devices
• Port 10/100 BASE-TX Fast Ethernet
• Supports 802.3af PoE
• Port DI / DO
• Card slot MicroSD / SDHC
Network Protocols
• IPv6
• IPv4
• TCP / IP
• DHCP-Client
• NTP-Client (D-Link)
• DNS-client
• DNS-Client (D-Link)
• SMTP-client
• FTP-client
• Samba-client
• UPnP port forwarding
• Filtering IP-addresses
• QoS
• CoS
• Multicast
• Security administrator account and user groups
• Password authentication
• Encryption HTTP and RTSP
System control
System requirements for Web-based interface
Web-browser: Internet Explorer, Firefox or Chrome
Event Management
• Motion detection
• Event notification and download stop-kadrov/videoklipov via email or FTP
• Support for multiple SMTP servers, and FTP
• Multiple event notifications
• Several ways to create backups
Remote management
• Create stop-kadrov/videoklipov and save to a local hard drive or NAS via web-browser
• Interface settings, available through the web-browser
Support for mobile devices
• OS Windows 7/Vista/XP, PDA or mobile phone
• Mobile mydlink app for mobile devices running iOS and Android
System Requirements D-ViewCam ™
• Operating System: Microsoft Windows 7/Vista/XP
• Web-browser: Internet Explorer 7 or above
• Protocol: Standard TCP / IP
The software features D-ViewCam ™
• Remote management / control of up to 32 cameras
• Viewing images on a single screen: up to 32 cameras
• Supports all management functions in the Web-interface
• Recording Options for triggering a sensor or manually

Fiziksel Özellikler

510 g ± 5%
• External power adapter:
    - Input: 100-240 VAC, 50/60 Hz
    - Output: 5 VDC, 1.2 A
• Power over Ethernet-cable (technology PoE)
Power consumption
5.4 W (maximum)
• Operating: -25 ° to 50 ° C
• Storage: -20 ° to 70 ° C
• Operating: 20% to 80% (non-condensing)
• Storage: 5% to 95% (non-condensing)
• CE
• C-Tick


¹ Frame rate when transferring real-time video may vary depending on the network conditions and the method used


Sipariş Bilgisi

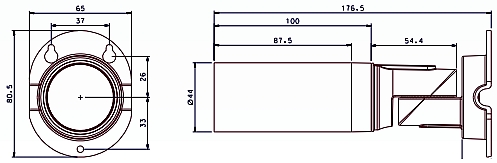

Front view
View from the right
