DPS-PWR1200DCYeni
1200 W DC Power Supply with a Fan for the DXS-3130-28P Switch
Tanımlama
DPS-PWR1200DC is a 1200 W DC Power Supply with a fan for the DXS-3130-28P Switch.
Genel Özellikler
|
Hardware
|
|
|
Max. Output Power
|
• 1200 W
|
|
Rated Input Voltage Range
|
• 36~72 V DC
|
|
Output Voltage
|
• 54.5 V DC
|
|
Max. Input Current
|
• 31.5 A @ 36 V DC
• 20.5 A @ 72 V DC
|
|
Max. Output Current
|
• 22 A @ 54.5 V DC
|
|
Max. Inrush Current
|
• 25 A @ 48 V DC
|
|
Efficiency
|
• >88% @ 72 V DC
|
|
Physical Parameters
|
|
|
Dimensions (L x W x H)
|
• 185 х 73.5 х 40 mm
|
|
Operational Conditions
|
|
|
MTBF (hours)
|
• 196 328
|
|
Temperature
|
• Operating: 0 to 50 °C
• Storage: -20 to 80 °C
|
|
Humidity
|
• Operating: 20 to 80% non-condensing
• Storage: 10 to 90% non-condensing
|
|
Compatible Equipment
|
|
|
• DXS-3130-28P Switch
|
|
Çözümler
Sipariş Bilgisi
|
DPS-PWR1200DC
|
DC Power Supply with a Fan for the DXS-3130-28P Switch, 1200 W
|

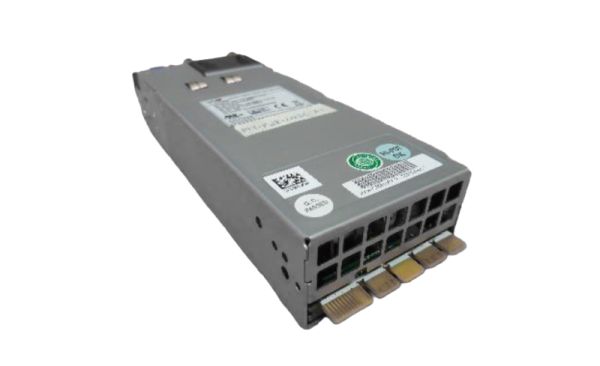

Görseller
DPS-PWR1200DC/A1
