DPH-150S/E/F1EOL EOS

Broadband Internet IP phone

Description

Internet phone made for home & office
The DPH-150S Broadband Internet IP Phone allows you to take advantage of your DSL/cable modem connection to make inexpensive Internet phone calls. It combines the industry’s latest Voice over the IP network (VoIP) technology with advanced communication features, and is compatible with industry-wide phone services. This sleek designed IP phone gives you the advantages of VoIP, while retaining the same look and feel of a traditional desktop telephone.
Superior voice quality
The DPH-150S IP phone incorporates Quality of Service (QoS) to ensure that voice received through the Internet is the same as or even surpasses that received on the ordinary phone. It supports many useful functions such as call transfer, caller ID display, 3-way conference and speed dialing to make it convenient to dial out or answer phone calls.
Surf internet while making internet phone calls
The DPH-150S comes with two Ethernet ports, one to connect to a DSL or cable modem, or to your broadband router. Once connected and logged onto the Internet, you are ready to make and receive calls. In addition, this IP phone provides another Ethernet port for connection to your PC, so you can talk on the IP telephone while browsing web sites, send e-mail, transfer files and do other network tasks on your PC.
Quality of service and security
The DPH-150S supports voice VLAN to isolate your voice communication so it cannot be tapped over the network. It provides priority queues to streamline traffic so web browsing and Internet download will not interfere with voice traffic and degrade Internet phone quality.

General features

Network interface
• One RJ-45 port can connect to DSL/cable modem, remote router or Ethernet/Gigabit switch, the other RJ-45 port can connect to a PC
Signal, media & network protocols
• SIP RFC 3261 & the related RFC standard in Appendix A
• SDP RFC 2327
• RTP RFC 1889
• IP assignment: Static IP, DHCP and PPPoE
• STUN, static port mapping (for NAT traversal)
• SNTP
• DNS & DNS SRV
• TFTP/FTP/HTTP for Auto Provision
• IP/TCP/UDP/ARP/ICMP
Voice codec
• G.711a/u (64 kbps)
• G.729A/B (8kbp)
• G.723.1 (*Optional)
Advanced voice quality features
• Silence Suppression
• Acoustic Echo Cancellation (G.167)
• Voice Active Detection (VAD)
• Comfort Noise Generation
• Jitter Buffer
• DTMF Transmitter (SIP info, Transparent, RFC 2833)
• Packet Lost Concealment (PLC)
Keypad
• Menu
• 3 Soft keys for doing more functions
• Phone Book
• Callers
• 2 Navigator Keys for navigating in configuration; volume adjustment of Ringer, Speaker phone & Handset
• MWI
• Conference
• RLS (Release key)
• Mute
• Transfer
• R/Send (Redial and the entry to access call history; finish dialing and call the number)
• Hold
• Speaker
• R/Send (Redial and the entry to access call history; finish dialing and call the number)
• Hold
• Speaker
• 12 numeric keys with star & pound key
Call Features
• Call Forward (Busy, No answer, Unconditional)
• Call Waiting
• Call waiting Indication
• Three Way Conference
• Anonymous Call/Rejection
• Message Waiting Indication
• Do Not Disturb
• Auto Answer
• Black list
• Limit list
• Auto hangup
• Ban outgoing
• hotline
Speaker phone
Built-in Speaker
Remote firmware upgrade
• FTP/TFTP/HTTP for Firmware remote update
• APS auto-provisioning for firmware and profile upgrade
User interface/network management
• LCD/Keypad UI in English & other Languages
• HTTP (WEB) UI in English version & other Languages
QoS
• IEEE 802.1p Compliant
• Diffserv (DSCP)/ToS
Security/Class of service
• 802.1Q VLAN Tag
• Full range VLAN ID Support
Phone features
• Mult-user (2 SIP accounts)
• Caller ID display
• Call History: 100 Missed Calls, 100 Received Calls, 100 Dialed Calls
• Phone book (up to 500 contact names and phone numbers)
• Day/Time display
• Call/Time display
• 14 Selective Ring tones (9 tones & 5 melodies)
• 10 Speed dial number
• Incoming call indicator
• Password control for Configuration
• Pre-dial before sending
• Memo
Input power
100~120, 220~240VAC
AC-DC switching power adapter
Output power
5V 1A DC
Power consumption
• Typical: 1.5 Watt (Standby)
• Max: 1.8 Watt (Talking)
Dimensions
240 x 190 x 60 mm
Operating temperature
0° to 40°C
Storage temperature
-20° to 60° C
Operating humidity
10% to 65% non-condensing
Storage humidity
15% to 85% non-condensing
Certifications
CE Class B

Certificates

Order info

DPH-150S/E/F1 Broadband Internet IP phone

Pictures

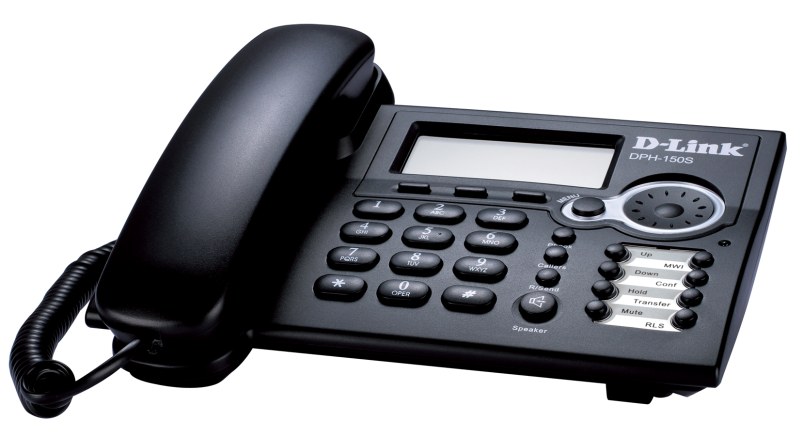

DPH-150S/E/F1
Front view
