DMC-805G
Description
This converter converts 1000BASE-T twisted-pair signals to 1000BASE-SX/LX multi-mode/single-mode fiber signals. Maximum fiber cable distance is 550 m for 1000BASE-SX * and 20 km for 1000BASE-LX. 1 RJ-45 twisted-pair port and 1 SFP port (mini GBIC) are provided.
* Maximum fiber cable distance support is as follows:
- For 62.5/125 micron multi-mode fiber cable: up to 220 m
- For 50/125-micron multi-mode fiber cable: up to 550 m
General features
Interface
Number of Ports
• 1 x 1000BASE-T RJ-45 port
• 1 x 1000BASE-SX/LX SC port
Standards
• IEEE 802.3ab for 1000BASE-TX
• IEEE 802.3z for 1000BASE-SX/LX
Data Transfer Rate
• 2000 Mbps (full-duplex)
Duplex Mode
• Full-duplex
Media Types
• 1000BASE-T: 4-pair Cat. 5, Shielded Twisted Pair (STP) (up to 100 m)
• 1000BASE-SX/LX: Depends on transceiver
Media Exchange Interface
• Auto-MDI/MDIX
Functionality
Transmission Mode
• Store-and-forward
Forwarding Rate
• Full wire-speed forwarding rate
Management
• Through the DMC-1000 chassis with the DMC-1002 management module installed
Management Functions
• LLR
• Fiber mode
Physical
Diagnostic LEDs
• Power
• LINK/ACT (for twisted pair ports)
AC Input
• 5 V/1 A external power adapter
Temperature
• Operating: 0 °C to 40 °C (32 °F to 104 °F)
• Storage: -25 °C to 70 °C (13 ºF to 158 °F)
Humidity
• 10% to 90% RH, non-condensing
Dimensions
• 120 x 88 x 25 mm (4.72 x 3.46 x 0.98 in)
Weight
• 305 g (0.67 lbs)
Fiber Wavelength
• 1300 nm
Supported Fiber Cable Length
• Depends on SFP transceiver
Emission Certifications (EMI)
• FCC Class A
• VCCI Class A
• CE Class A
Certificates
Order info
DMC-805G 1000BASE-T Twisted Pair to 1000BASE-SX/LX Single-mode fiber (variable, LC) Media Converter Module

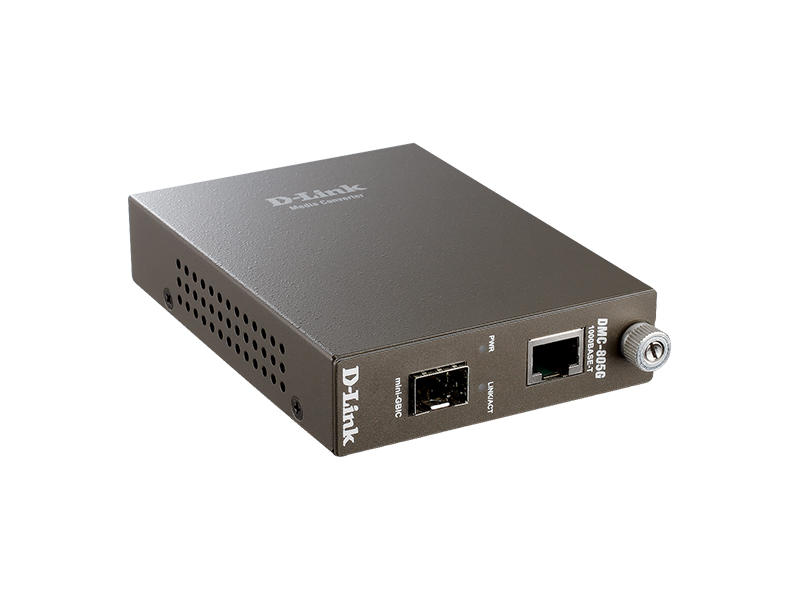

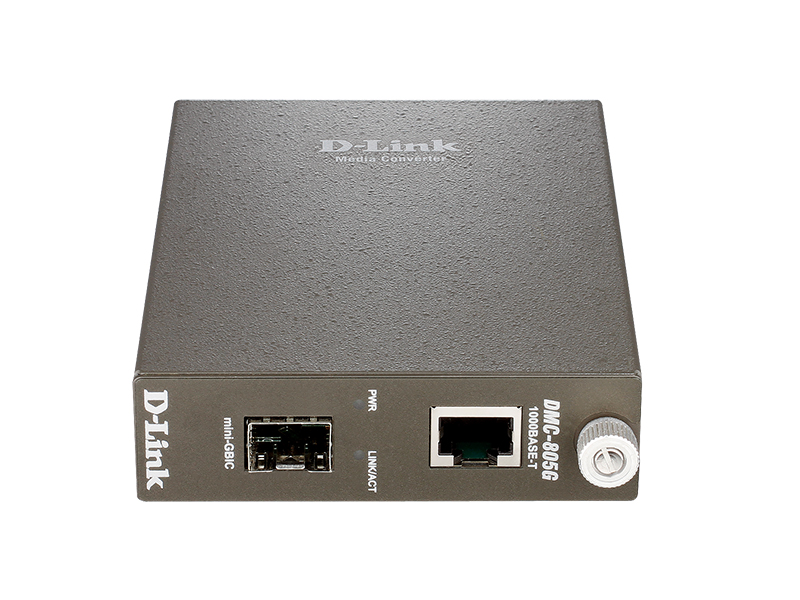

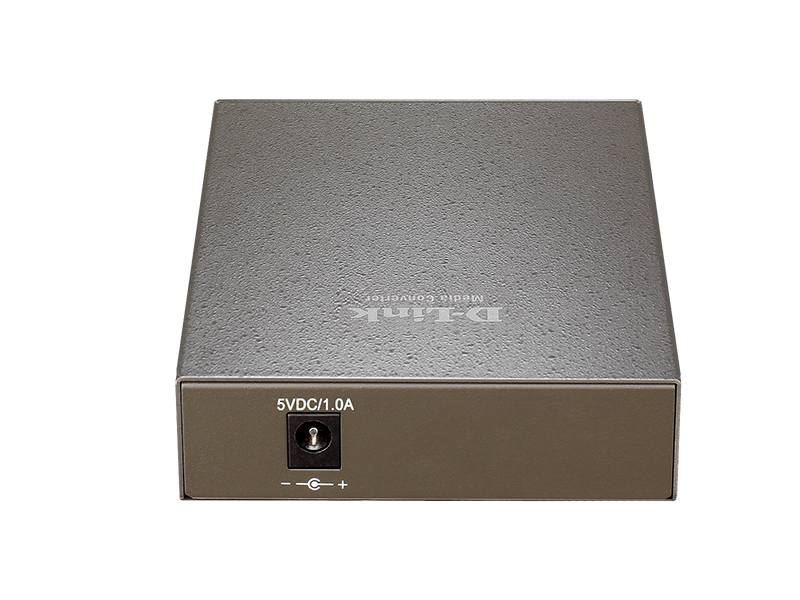

Pictures
