DSL-2640UEOL EOS

WIRELESS G ADSL2/2+ 4-PORT ROUTER

Description

ULTIMATE INTERNET CONNECTION
The DSL-2640U wireless ADSL router is an affordable high-performance ADSL router for home and the small office. With integrated ADSL2/2+ supporting  up to 24Mbps download speed, 802.11g wireless LAN, firewall protection, Quality of Service (QoS) and 4-port switch, this router provides all the essentials  that a home or small office needs to establish a secure and high-speed remote link to the outside world.

AFFORDABLE HIGH-SPEED CONNECTION FOR HOME & SMALL OFFICE
Designed as a very affordable high-performance ADSL router for home and SOHO users, the DSL-2640U provides not only the low-cost, high-speed  Internet connection, but also the security and Quality of Service (QoS) required by users in today’s high-risk and versatile Internet environments.

READY WIRED & WIRELESS LAN CONNECTION
The DSL-2640U provides an integrated 802.11g WLAN interface supporting wireless speeds of up to 54Mbps and interoperability with 802.11b wireless   devices on the 2.4GHz frequency band. It also provides four 10/100Mbps Ethernet switch ports for ready workstations connection. These built-in functions save you the cost and trouble of installing a separate wireless access point and an Ethernet switch.

FIREWALL PROTECTION & QoS
Security features prevents unauthorized access to the home and office network from Internet intruders. The router provides firewall security using Stateful Packet Inspection (SPI) and hacker attack logging for Denial of Service (DoS) attack protection. SPI inspects the contents of all incoming packet headers before deciding what packets are allowed to pass through. Router access control is provided with packet filtering based on port and source/destination MAC/IP addresses. For Quality of Service (QoS), the router supports multiple priority queues to enable a group of home or office users to experience the benefit of smooth network connection of inbound and outbound data without concern of traffic congestion. This QoS support allows users to enjoy high ADSL transmission for applications such as VoIP, streaming multimedia and on-line games over the Internet.

General features

Device Interfaces
- 1 RJ-11 ADSL port
- 4 RJ-45 10/100BASE-TX Ethernet LAN switch ports with auto MDI/MDIX
- Built-in 802.11g WLAN

Wireless LAN
- IEEE 802.11g standard
- Frequency range: 2.4 GHz to 2.484G Hz
- Wireless speed: up to 54Mbps
- 64/128-bit WEP data encryption
- Multiple SSID
- MAC-based ACL
- WPA/WPA2 security with TKIP & AES support
- WDS support
- 802.11e WLAN QoS (WMM/WME)

ADSL Standards
- ADSL: Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1 (G.dmt) Annex A, ITU-T G.992.2 (G.lite)  Annex A, ITU-T G.994.1 (G.hs)
- ADSL2: ITU-T G.992.3 (G.dmt.bis) Annex A/L/M, ITU-T G.992.4 (G.lite.bis) Annex A
- ADSL2+: ITU-T G.992.5 Annex A/L/M

ATM/PPP Protocols
- Multiple protocol encapsulation over AAL5
- Bridged and routed Ethernet encapsulation
- Logical Link Control (LLC) encapsulation & VC-based multiplexing
- ATM Forum UNI3.1/4.0 PVC
- ATM Adaptation Layer Type 5 (AAL5)
- ITU-T I.610 OAM F4/F5 loopback
- ATM QoS (Traffic Shaping)
- PPP over ATM
- PPP over Ethernet

Network Protocols and Features
- IP Static Routing
- RIP
- NAT
- Virtual Server & Port Forwarding
- DHCP server/client/relay
- DNS Relay, DDNS
- IGMP proxy
- SNTP

Firewall/Access Security
- NAT firewall
- MAC Filtering
- Packet Filtering (IP/ICMP/TCP/UDP)
- Stateful Packet Inspection (SPI)
- Denial of Service (DoS) prevention
- Intrusion Detection System and logging
- DMZ

VPN
Multiple IPSec/PPTP/L2TP pass-through

QoS
- Traffic Prioritization/Classification based on:
  + Physical port
  + 802.1p Priority Queues
  + Application port
  + User-defined (TCP/UDP/ICMP etc.)
- 3 priority queues per PVC
- PVC/VLAN port mapping
- IGMP v.2 snooping

Configuration/Management
- Quick Installation Wizard
- Web-based GUI
- Web-based/TFTP firmware upgrade, configuration up/download
- UPnP
- SNMP v1, v2c, built-in MIB-I, MIB-II agent
- TR-069 compliant


Certificates

Order info

DSL-2640U   Wireless ADSL2/2+ 4-Port Ethernet Router

Pictures

DSL-2640U/C4

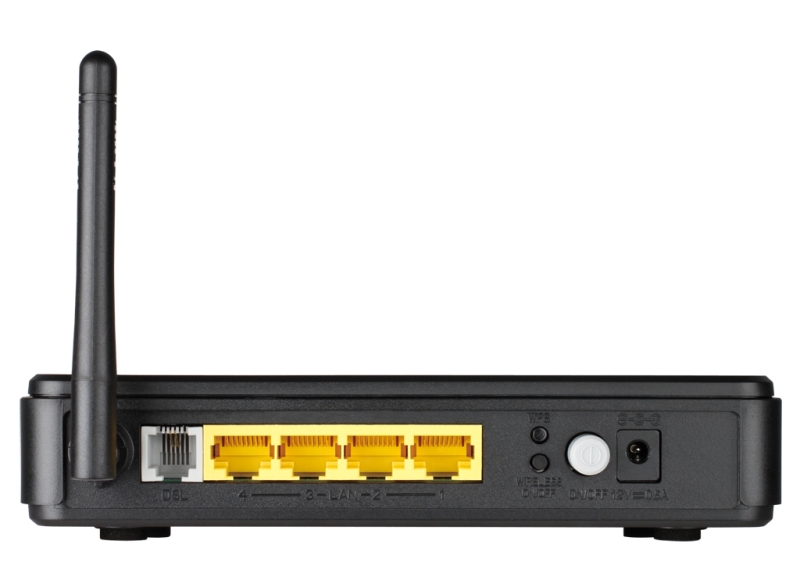

Back view

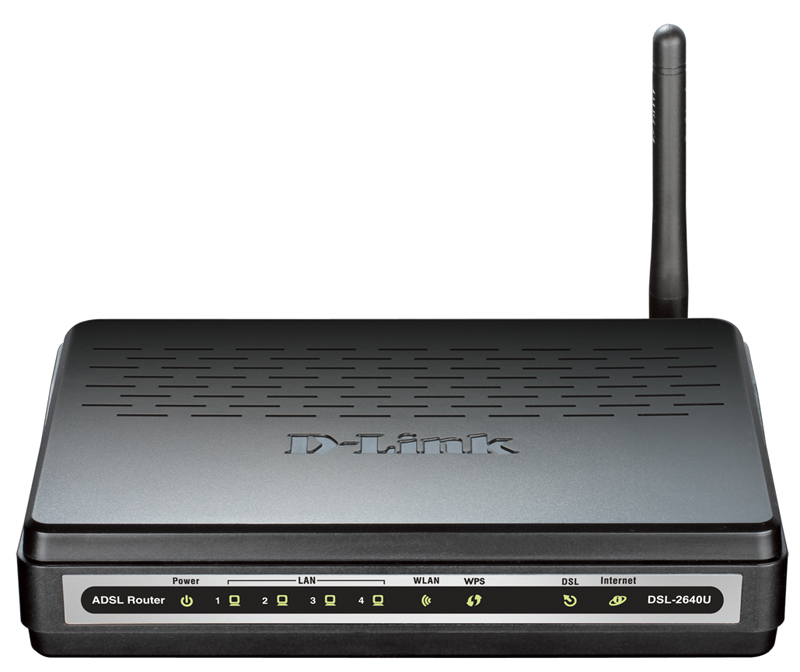

Front view
