DSL-30CF/RS
ADSL2+ Annex A splitter with 12 cm phone cable
Description
The DSL-30CF/RS splitter is intended for dividing voice signal frequencies and frequencies used by xDSL equipment. The DSL-30CF/RS is placed at the phone line input (before phone connection). Thus, using the splitter excludes interference of modem and phone signals, providing concurrent operation of the devices. ADSL, ADSL2, ADSL2+ Annex A/L/M standards are supported.
General features
Interfaces
• One RJ-11 connector for a phone line
• One RJ-11 connector for a phone (or mini-PBX)
• One RJ-11 connector for a ADSL modem
Standards
• ADSL, ADSL2, ADSL2+ Annex A/ L/ M
Dimensions (L x W x H)
• 45 x 33 x 25 mm
Weight
• 45 g
Certificates
Order info
DSL-30CF/RS ADSL2+ Annex A splitter with 12 cm phone cable

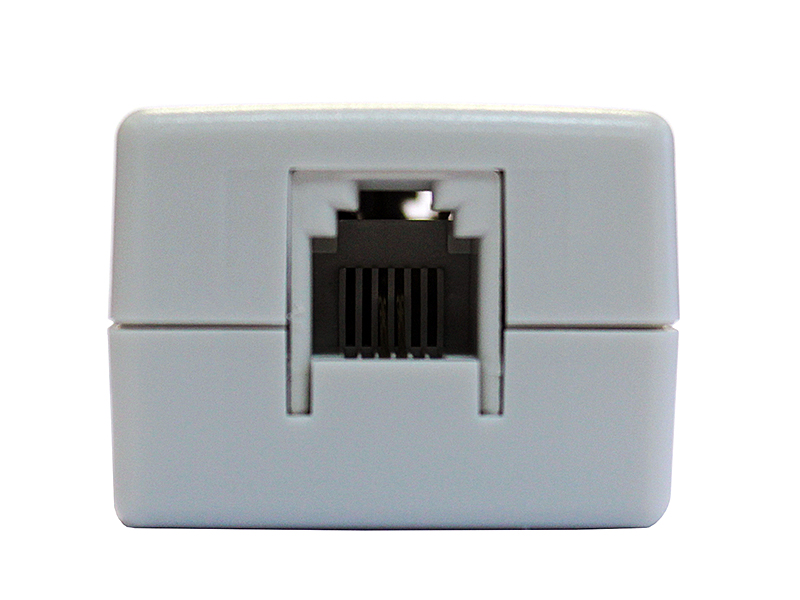

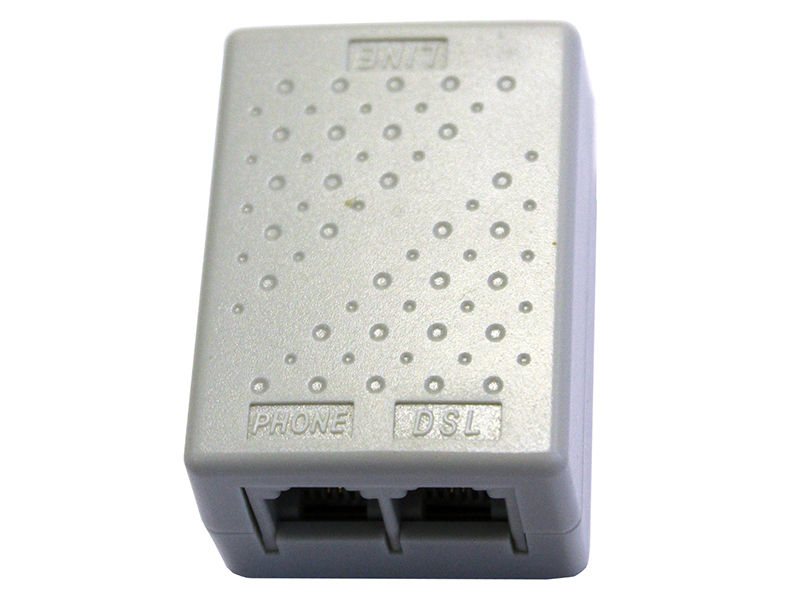

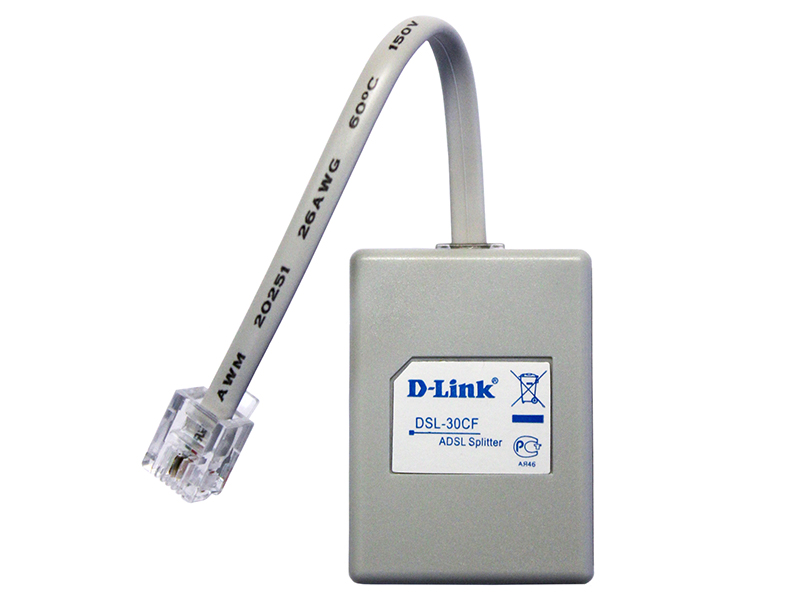

Pictures
DSL-30CF/RS
