D-Link DSL-2740U

Description

ADSL Port and 4-port Switch

The router is equipped with an ADSL port to connect to an ADSL line. The built-in 4-port switch enables you to connect Ethernet-enabled computers, game consoles, and other devices to your network. In addition, any Ethernet port of the device can be used to connect to a private Ethernet line.

Wireless Interface

You are able to quickly create a wireless network at home or in your office, which lets your relatives or employees connect to your wireless network virtually anywhere (within the operational range of your wireless network). The router can operate as a base station for connecting wireless devices of the standards 802.11b, 802.11g, and 802.11n.

The router supports multiple functions for the wireless interface: several security standards (WEP, WPA/WPA2), MAC address filtering, and the WPS function.

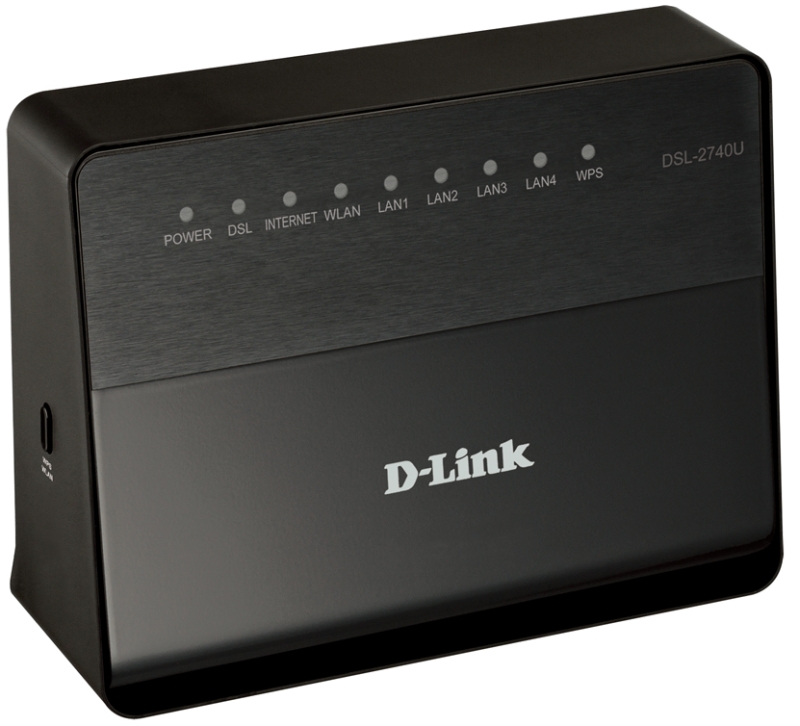

In addition, the device is equipped with a button for switching the Wi-Fi network off/on. If needed, for example, when you leave home, you can easily switch the router’s WLAN by pressing the button, and devices connected to the LAN ports of the router will stay online.

Security

The wireless router DSL-2740U includes a built-in firewall. The advanced security functions minimize threats of hacker attacks, prevent unwanted intrusions to your network, and block access to unwanted websites for users of your LAN.

Easy configuration and update

You can configure the settings of the wireless router DSL-2740U via the user-friendly web-based interface (the interface is available in several languages).

Now you can simply update the firmware: the router itself finds approved firmware on D-Link update server and notifies when ready to install it.

General features

Hardware

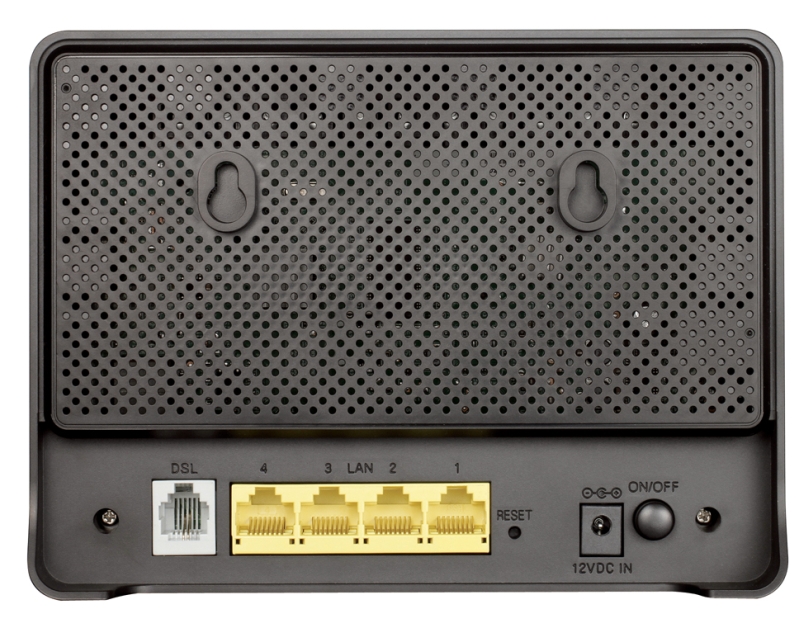

Interfaces	• RJ-11 ADSL port • 4 10/100BASE-TX LAN ports

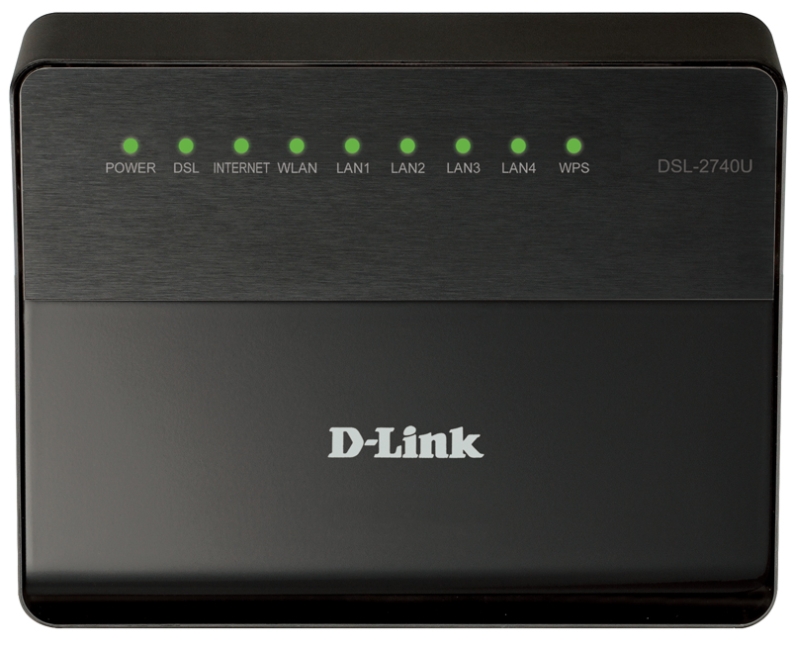

LEDs	• POWER • DSL • INTERNET • WLAN • LAN 1-4 • WPS
Buttons	• ON/OFF button to power on/power off • RESET button to restore factory default settings • WPS/WLAN button to set up secure wireless connection and enable/disable wireless network
Antenna	• Two internal omnidirectional antennas (2dBi gain)
MIMO	• 2 x 2
Power connector	• Power input connector (DC)
DSL Parameters
ADSL Standards	• ADSL: Multi-mode, ANSI T1.413 Issue 2, ITU-T G.992.1 (G.dmt) Annex A, ITU-T G.992.2 (G.lite) Annex A, ITU-T G.994.1 (G.hs) • ADSL2: ITU-T G.992.3 (G.dmt.bis) Annex A/L/M, ITU-T G.992.4 (G.lite.bis) Annex A • ADSL2+: ITU-T G.992.5 Annex A/L/M
ATM/PPP Protocols	• Bridged and routed Ethernet encapsulation • VC-based or LLC-based multiplexing • ATM Forum UNI3.1/4.0 PVC (up to 8 PVCs) • ATM Adaptation Layer Type 5 (AAL5) • ITU-T I.610 OAM F4/F5 loopback • ATM QoS • PPP over ATM (RFC 2364) • PPP over Ethernet (PPPoE) • Keep-alive for PPP connections
Software
WAN connection types	• PPPoA • PPPoE • IPv6 PPPoE • PPPoE Dual Stack • IPoA • Static IP / Dynamic IP • Static IPv6 / Dynamic IPv6 • Bridge
Network functions	• DHCP server/relay • DHCPv6 server (Stateful/Stateless), IPv6 prefix delegation • DNS relay • Support of DNSv6 AAAA records • Dynamic DNS • Static IP routing • Static IPv6 routing • IGMP Proxy • IGMP snooping • RIP • Support of UPnP IGD • Support of VLAN • WAN ping respond • Support of SIP • Support of RTSP
Firewall functions	• Network Address Translation (NAT) • Stateful Packet Inspection (SPI) • IP filters • MAC filter • URL filter • DMZ • Prevention of ARP and DDoS attacks • Virtual servers • Built-in Yandex.DNS web content filtering service
VPN	• PPTP/L2TP/PPPoE pass-through
QoS	• Interface grouping • VLAN priority (802.1p)
Management	• Local and remote access to settings through TELNET/WEB (HTTP) • Multilingual web-based interface for configuration and management • Firmware update via web-based interface • Automatic notification on new firmware version • Saving/restoring configuration to/from file • Support of remote logging • Automatic synchronization of system time with NTP server and manual time/date setup • Ping function • TR-069 client
Wireless Module Parameters
Standards	• IEEE 802.11b/g/n
Frequency range	• 2400 ~ 2483.5MHz
Wireless connection security	• WEP • WPA/WPA2 (Personal) • МАС filter • WPS (PBC/PIN)
Advanced functions	• Managing connected stations • Advanced settings
Wireless connection rate	• IEEE 802.11b: 1, 2, 5.5, and 11Mbps • IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, and 54Mbps • IEEE 802.11n: from 6.5 to 300Mbps (from MCS0 to MCS15)
Transmitter output power The maximum value of the transmitter output power depends upon the radio frequency regulations applied in your country	• 802.11b 16.5 ~ 18.5dBm • 802.11g 13.5 ~ 16.5dBm • 802.11n 13.5 ~ 16.5dBm
Modulation schemes	• 802.11b: CCK (11, 5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps), DSSS • 802.11g: PSK/CCK, DBPSK, DQPSK, OFDM, BPSK, QPSK, 16QAM, 64QAM • 802.11n: PSK/CCK, DBPSK, DQPSK, OFDM, etc.
Physical Parameters
Dimensions	• 160 x 115 x 58 mm (6.3 x 4.5 x 2.3 in)
Weight	• 210 g (0.46 lb)
Operating Environment
Power	• Output: 12V DC, 0.5A
Temperature	• Operating: from 0 to 40 °C • Storage: from -20 to 65 °C
Humidity	• From 5% to 95% (non-condensing)
Delivery Package
• Router DSL-2740U • Power adapter DC 12V/0.5A • RJ-11 telephone cable • Straight-through Ethernet cable (CAT 5E) • Splitter • “Quick Installation Guide” (brochure)
