DAP-1520
Wireless AC750 Dual Band Range Extender
Description
The DAP-1520 Wireless AC750 Dual Band Range Extender is a portable plug-in repeater that lets you extend an existing wireless network. You can place it anywhere in your home to increase the range of your wireless network. Tiny yet powerful, it supports Wireless AC speeds of up to 750 Mbps, yet fits in the palm of your hand.
Extend Your Wireless Network
Increase the coverage of your home Wireless AC network with the sleek and easy-to-use DAP-1520 Wireless AC750 Dual Band Range Extender. Dual-band technology helps reduce interference from nearby wireless transmitters in the home, and also provides backward compatibility with older wireless devices in your network, allowing you to enjoy a blazing-fast, reliable wireless connection.
Easy to Set Up, Easy to Use
Setting up the Wireless AC750 Dual Band Range Extender is simple. You can use the supported QRS Mobile app on your iOS or Android mobile device to set up the DAP-1520 easily without needing a computer. Alternatively, you can use one-touch configuration by pushing the WPS push-button on the DAP-1520 and on the router or AP you want to extend, and the DAP-1520
will automatically configure itself for you. It even includes a built-in setup wizard that lets you configure it wirelessly with a PC or mobile device.
Compact, Convenient Design
The DAP-1520 is a compact device that is ideal for use at home or a small office, as it does not take up much space and is ready to use by simply plugging it in. Its diminutive wall-plug design easily plugs into a power outlet without blocking other outlets and saves you the hassle of dealing with a power cord. Its sleek, unobtrusive appearance blends easily into the decor of your home or office.
General features
Device Interfaces
• 802.11ac/n/g/b/a wireless LAN
• WPS button
• Reset button
LEDs
• Status/WPS
Standards
• IEEE 802.11ac (draft)
• IEEE 802.11n
• IEEE 802.11g
• IEEE 802.11b
• IEEE 802.11a
Antennas
• Two internal antennas
Plug Type
• Region dependent
Wireless Speed*
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbit/s
• 802.11b: 1, 2, 5.5, 11 Mbit/s
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbit/s
• 802.11n (2.4 GHz): 6.5 to 300 Mbit/s (MCS0-MCS15)
• 802.11n (5 GHz): 6.5 to 150 Mbit/s (MCS0-MCS7)
• 802.11ac:
MCS GI=800ns GI=400ns
0 29.3 32.5
1 58.5 65
2 87.8 97.5
3 117 130
4 175.5 195
5 234 260
6 263.3 292.5
7 292.5 325
8 351 390
9 390 433.3
The Output Power of Transmitter
• IEEE 802.11a:
19 dBm at 6-36 Mbit/s
16 dBm at 48-54 Mbit/s
• IEEE 802.11b:
16 dBm at 1, 2, 5.5, 11 Mbit/s
• IEEE 802.11g:
19 dBm at 6-36 Mbit/s
16 dBm at 48-54 Mbit/s
• IEEE 802.11n:
2.4 GHz
19 dBm at MCS0-5 and MCS8-12
16 dBm at MCS6-7 and MCS14-15
5 GHz
19 dBm at MCS0-5
16 dBm at MCS6-7
• IEEE 802.11ac:
19 dBm at MCS0-6
16 dBm at MCS7
14 dBm at MCS8
13 dBm at MCS9
Receiver Sensitivity
• IEEE 802.11a:
-82 dBm at 6 Mbit/s
-81 dBm at 9 Mbit/s
-79 dBm at 12 Mbit/s
-77 dBm at 18 Mbit/s
-74 dBm at 24 Mbit/s
-70 dBm at 36 Mbit/s
-66 dBm at 48 Mbit/s
-65 dBm at 54 Mbit/s
• IEEE 802.11b:
-89 dBm at 2 Mbit/s
-83 dBm at 11 Mbit/s
• IEEE 802.11g:
-82 dBm at 6 Mbit/s
-81 dBm at 9 Mbit/s
-79 dBm at 12 Mbit/s
-77 dBm at 18 Mbit/s
-74 dBm at 24 Mbit/s
-70 dBm at 36 Mbit/s
-66 dBm at 48 Mbit/s
-65 dBm at 54 Mbit/s
• IEEE 802.11n:
2.4 GHz/HT-20
-82 dBm at MCS0/8
-79 dBm at MCS1/9
-76 dBm at MCS2/10
-74 dBm at MCS3/11
-70 dBm at MCS4/12
-66 dBm at MCS5/13
-65 dBm at MCS6/14
-64 dBm at MCS7/15
2.4 GHz/HT-40
-79 dBm at MCS0/8
-76 dBm at MCS1/9
-74 dBm at MCS2/10
-71 dBm at MCS3/11
-67 dBm at MCS4/12
-63 dBm at MCS5/13
-62 dBm at MCS6/14
-61 dBm at MCS7/15
5 GHz/HT-20
-82 dBm at MCS0
-79 dBm at MCS1
-77 dBm at MCS2
-74 dBm at MCS3
-70 dBm at MCS4
-66 dBm at MCS5
-65 dBm at MCS6
-64 dBm at MCS7
5 GHz/HT-40
-79 dBm at MCS0
-76 dBm at MCS1
-74 dBm at MCS2
-71 dBm at MCS3
-67 dBm at MCS4
-63 dBm at MCS5
-62 dBm at MCS6
-61 dBm at MCS7
• IEEE 802.11ac:
5 GHz/HT-80
-76 dBm at MCS0
-73 dBm at MCS1
-71 dBm at MCS2
-68 dBm at MCS3
-64 dBm at MCS4
-60 dBm at MCS5
-59 dBm at MCS6
-58 dBm at MCS7
-53 dBm at MCS8
-51 dBm at MCS9
5 GHz/VHT-40
-56 dBm at MCS8
-54 dBm at MCS9
5 GHz/VHT-20
-82 dBm at MCS0
-79 dBm at MCS1
-77 dBm at MCS2
-74 dBm at MCS3
-70 dBm at MCS4
-66 dBm at MCS5
-65 dBm at MCS6
-64 dBm at MCS7
-59 dBm at MCS8
-57 dBm at MCS9
Wireless Security
• Wi-Fi Protected Access (WPA/WPA2)
• WEP 64/128-bit encryption
• WPS (PBC)
Advanced Features
• D-Link One-Touch Extender Setup
Device Management
• Supports QRS Mobile app for iPhone, iPad, iPod Touch, and Android mobile devices
• Web UI
Certificates
Order info
DAP-1520/A1A Wireless AC750 Dual Band Range Extender

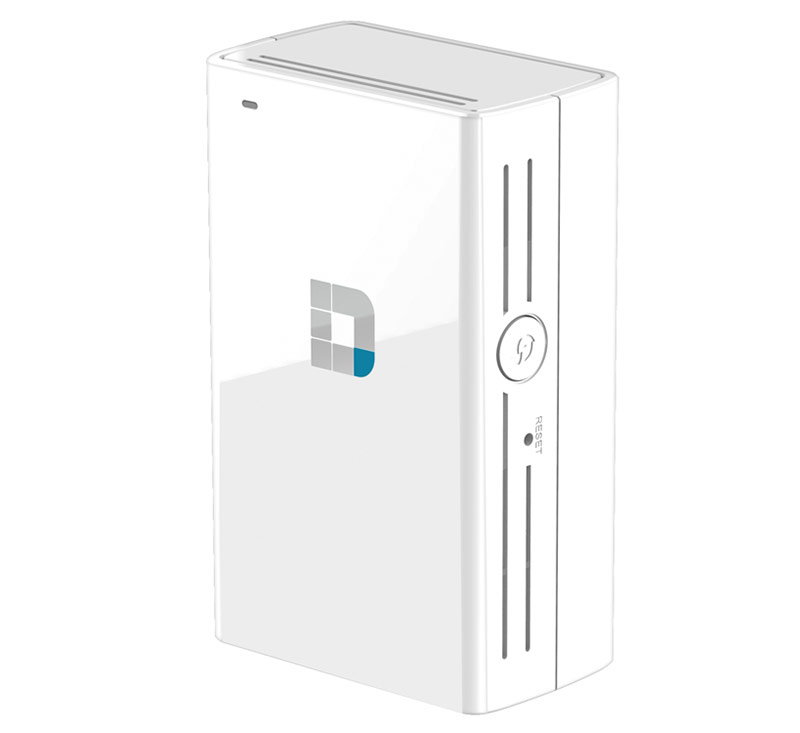

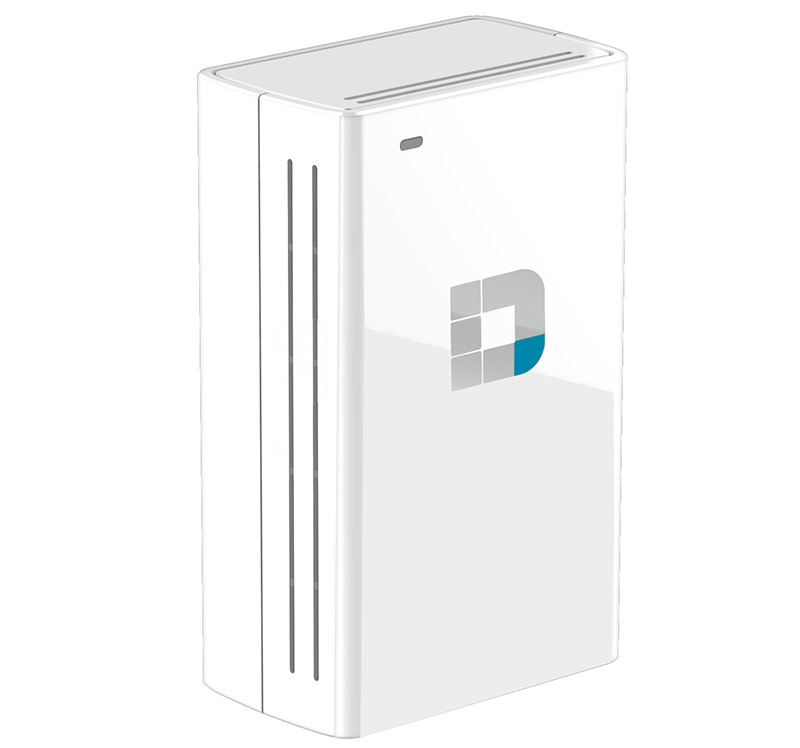

Pictures
DAP-1520/Ax
