DUB-2333
USB-C Mini Docking Station with 3xUSB 3.0, USB-C/PD 3.0 and HDMI
Description
The DUB-2333 docking station allows you to enhance the functionality of your laptop or desktop computer equipped with USB Type-C port. USB 3.0 ports allow to connect up to three peripheral USB devices to the DUB-2333 while HDMI port1 supporting up to 4K resolution is used for connecting monitor. USB Type-C port is intended for connecting PD 3.0 charger, allowing to deliver not only data, but also power to your laptop via connected DUB-2333 docking station2. This means you can charge your laptop while also connect additional devices like monitors, digital and web cameras, card readers, hard drives, mice, keyboards, printers, scanners, and other peripheral devices.
Add Three USB 3.0 Ports to Your Computer
With the DUB-2333 docking station, you can conveniently add three USB 3.0 ports and connect peripheral devices to your computer. USB 3.0 technology supports data rates of up to 5 Gbps.
PD 3.0 Standard
USB Type-C port is intended for connecting PD 3.0 charger, allowing to deliver not only data, but also power to your laptop via connected DUB-2333 docking station2.
Plug-and-Play Support
Simply connect the DUB-2333 to your computer. It’s that easy - no drivers or software installation is required.
1Please make sure that the USB Type-C port of your computer supports DP Alt (DisplayPort Alternate Mode).
2Please make sure that the USB Type-C port of your laptop supports PD 3.0.
General features
|
Hardware
|
|
|
Interfaces
|
• One USB Type-C connector
• Three USB 3.0 Type-A ports
• One USB Type-C/PD 3.0 port
• One HDMI 1.4b, HDCP 1.4 port
|
|
LEDs
|
• Power (per device)
- Solid green - power is on
|
|
General
|
|
|
Standards
|
• USB 3.0
• USB 2.0
• USB 1.1
|
|
Data rate
|
• Up to 5 Gbps
|
|
Resolution
|
• 4K @ 30 Hz, 1080P @ 120 Hz
|
|
System requirements
|
• Available USB Type-C port
• Windows 7/8/8.1/10, macOS (OS X 10.8 and above)
|
|
Physical Parameters
|
|
|
Dimensions (L x W x H)
|
• 118 x 35 x 13.5 mm
|
|
Weight
|
• 0.07 kg
|
|
Environmental Conditions
|
|
|
Power input
|
• From computer (USB bus powered)
|
|
Supplied charging voltage/current
|
• 20 V / 3 A (PD 3.0)
|
|
Temperature
|
• Operating: 0 to 45°C
• Storage: -10 to 70°C
|
|
Humidity
|
• Operating: up to 85% non-condensing
• Storage: up to 85% non-condensing
|
|
Package Contents
|
|
|
• DUB-2333 docking station
• Quick Installation Guide
• Warranty documents
|
|
Certificates
Order info
|
DUB-2333/A1A
|
USB-C Mini Docking Station with 3xUSB 3.0, USB-C/PD 3.0 and HDMI
|

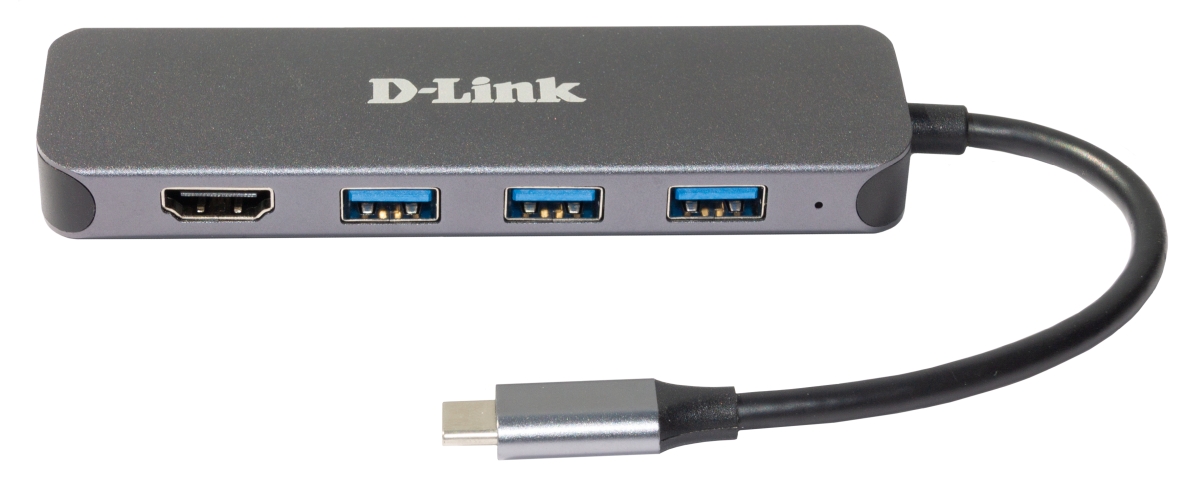

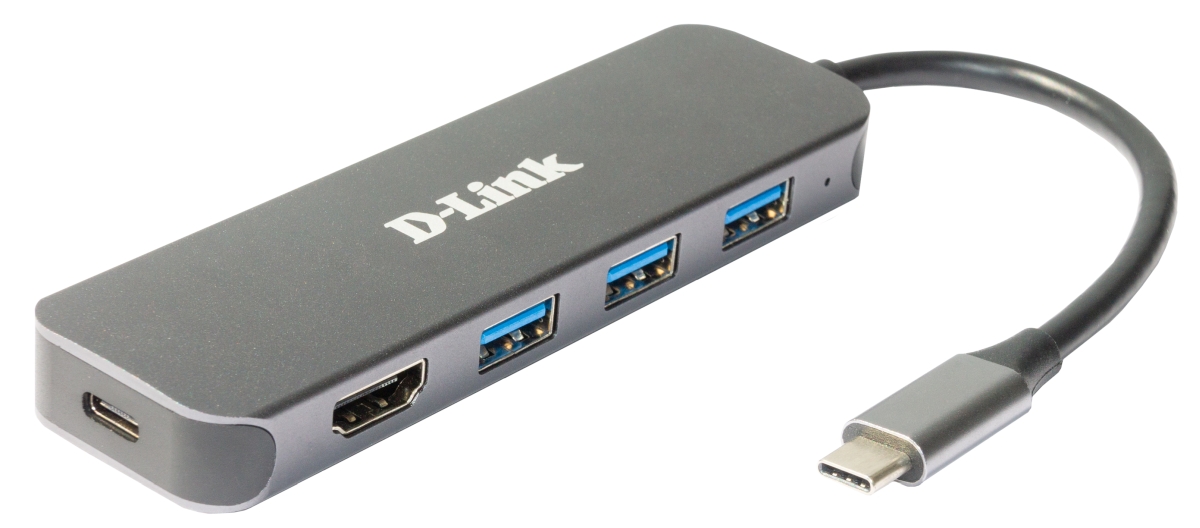

Pictures
DUB-2333/A1
