DCS-4602EVEOL EOS
Vigilance Full HD Outdoor Vandal-Proof PoE Dome Camera
Description
The D-Link DCS-4602EV Vigilance Full
HD Outdoor Vandal-Proof PoE Dome Camera is a high definition
professional surveillance and security solution suitable for small,
medium, and large enterprises. The camera uses a high-sensitivity 1/3”
megapixel progressive scan CMOS sensor with onboard WDR image
enhancement to deliver truly superior quality video in all conditions.
The all-in-one rugged design makes this camera extremely reliable and
ideal for deployment in surveillance applications without the need for
additional accessories.
High-Quality Streaming & Recording
To maximize bandwidth efficiency and improve image quality, the DCS-4602EV provides real-time video compression using the H.264 and MJPEG codecs, and supports three separate profiles for simultaneous video streaming and recording. This versatility enables a wide variety of security applications, such as monitoring public areas to detect incidents and to coordinate responses, enforcing access control to restricted areas, deterring criminal activity, or monitoring inventory.
Continuous Monitoring
The DCS-4602EV’s WDR image enhancement gives you improved image quality in environments with uneven or difficult lighting, so you can identify subjects that are backlit or in brightly lit areas. In low-light situations, the IR cut filter automatically slides out of the way to use all available light. The DCS-4602EV also has built-in IR LED illuminators with a 20 meter range, allowing the camera to keep watch even in complete darkness. These features work together to give you a reliable surveillance camera capable of monitoring an area 24 hours a day.
Robust Management Software
The DCS-4602EV Vigilance Full HD Outdoor Vandal-Proof PoE Dome Camera includes D-ViewCam, a complete surveillance software package that enables you to view, manage, and record from up to 32 cameras on a single computer in a central location. Recordings and e-mail alerts can be triggered through motion detection or events triggered by digital input devices, keeping administrators informed of any unusual activity.
Flexible Connectivity
The DCS-4602EV has a built-in 802.3af compliant PoE module that simplifies installation by providing power and networking connectivity with a single cable, reducing the need to drill holes or lay additional cabling.
High-Quality Streaming & Recording
To maximize bandwidth efficiency and improve image quality, the DCS-4602EV provides real-time video compression using the H.264 and MJPEG codecs, and supports three separate profiles for simultaneous video streaming and recording. This versatility enables a wide variety of security applications, such as monitoring public areas to detect incidents and to coordinate responses, enforcing access control to restricted areas, deterring criminal activity, or monitoring inventory.
Continuous Monitoring
The DCS-4602EV’s WDR image enhancement gives you improved image quality in environments with uneven or difficult lighting, so you can identify subjects that are backlit or in brightly lit areas. In low-light situations, the IR cut filter automatically slides out of the way to use all available light. The DCS-4602EV also has built-in IR LED illuminators with a 20 meter range, allowing the camera to keep watch even in complete darkness. These features work together to give you a reliable surveillance camera capable of monitoring an area 24 hours a day.
Robust Management Software
The DCS-4602EV Vigilance Full HD Outdoor Vandal-Proof PoE Dome Camera includes D-ViewCam, a complete surveillance software package that enables you to view, manage, and record from up to 32 cameras on a single computer in a central location. Recordings and e-mail alerts can be triggered through motion detection or events triggered by digital input devices, keeping administrators informed of any unusual activity.
Flexible Connectivity
The DCS-4602EV has a built-in 802.3af compliant PoE module that simplifies installation by providing power and networking connectivity with a single cable, reducing the need to drill holes or lay additional cabling.
General features
Camera
• 1/3” Megapixel progressive CMOS sensor
• 20 meter IR illumination distance
• Minimum illumination:
• 1.0 lux / F2.0 (color)
• 0.5 lux /F2.0 (B/W)
• 0 lux / F2.0 (IR-LED on)
• Built-in Infrared-Cut Removable (ICR) Filter module
• 10x digital zoom
• Minimum object distance 0.2M
• Focal length: 2.8 mm
• Aperture: F2.0
• Angle of view:
• (H) 96°
• (V) 54°
• (D) 108°
• Adjustment angle (non-motorized):
• Vertical: 60°
• Horizontal: 350°
Camera Housing
• IP-66 compliant weatherproof housing
• IK10 vandal-proof housing
Image Features
• Configurable image size, quality, frame rate, and bit rate
• Configurable privacy mask zones
• Time stamp and text overlays
• Configurable shutter speed, brightness, saturation,
• Configurable motion detection windows contrast, sharpness, WDR, and 3D filter.
Video Compression
• Simultaneous H.264/MJPEG format compression
• JPEG for still images
• H.264/MJPEG multicast streaming
Video Resolution
• 16:9 - 1920 x 1080, 1280 x 720, 800 x 448, 640 x 360, 480 x 272, 320 x 176 up to 30 fps
• 4:3 - 1440 x 1080, 1280 x 960, 900 x 720, 800 x 592, 640 x 480, 480 x 352, 320 x 240 up to 30 fps
External Device Interfaces
• 10/100 BASE-TX Fast Ethernet port
• Supports 802.3af PoE Class 2
Network
Network Protocols
• IPv6
• IPv4
• ARP
• TCP/IP
• UDP
• ICMP
• DHCP client
• NTP client (D-Link)
• DNS client
• DDNS client (D-Link)
• SMTP client
• FTP client
• HTTP/HTTPS
• Samba client
• PPPoE
• UPnP port forwarding
• RTP/RTSP/RTCP
• IP filtering
• Multicast
• CoS
• QoS/DSCP
• SNMP
• ONVIF compliant
Security
• Administrator and user group protection
• Password authentication
• HTTP and RTSP authentication
System Management
System Requirements for Web Interface
• Browser: Internet Explorer, Firefox, Safari
Event Management
• Motion detection
• Event notification and uploading of snapshots/video clips via e-mail or FTP
• Supports multiple SMTP and FTP servers
• Multiple event notifications
• Multiple recording methods for easy backup
Remote Management
• Take snapshots/video clips and save to local hard drive accessible via web browser
• Configuration interface
D-ViewCam™ System Requirements
• Operating System: Microsoft Windows 8/7/Vista
• Protocol: Standard TCP/IP
• Web Browser: Internet Explorer 7 or higher
D-ViewCam™ Software Functions
• Remote management/control of up to 32 cameras
• Supports all management functions provided in web interface
• Viewing of up to 32 cameras on one screen
• Scheduled motion triggered, or manual recording options
Weight
• 525 g ± 5%
Power
• Input: 100 to 240 V AC, 50/60 Hz
• Output: 12 V DC 1.5 A
Power Consumption
• 5.5 watts ± 5% (PoE)
Temperature
• Operating: -30 to 50 °C (-22 to 124 °F)
• Storage: -20 to 70 °C (-4 to 158 °F)
Humidity
• Operating: 20% to 80% non-condensing
• Storage: 5% to 95% non-condensing
Certifications
• CE
• FCC
• CE LVD
• C-Tick

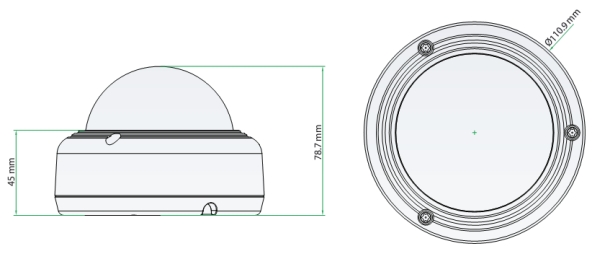

Dimensions
• 1/3” Megapixel progressive CMOS sensor
• 20 meter IR illumination distance
• Minimum illumination:
• 1.0 lux / F2.0 (color)
• 0.5 lux /F2.0 (B/W)
• 0 lux / F2.0 (IR-LED on)
• Built-in Infrared-Cut Removable (ICR) Filter module
• 10x digital zoom
• Minimum object distance 0.2M
• Focal length: 2.8 mm
• Aperture: F2.0
• Angle of view:
• (H) 96°
• (V) 54°
• (D) 108°
• Adjustment angle (non-motorized):
• Vertical: 60°
• Horizontal: 350°
Camera Housing
• IP-66 compliant weatherproof housing
• IK10 vandal-proof housing
Image Features
• Configurable image size, quality, frame rate, and bit rate
• Configurable privacy mask zones
• Time stamp and text overlays
• Configurable shutter speed, brightness, saturation,
• Configurable motion detection windows contrast, sharpness, WDR, and 3D filter.
Video Compression
• Simultaneous H.264/MJPEG format compression
• JPEG for still images
• H.264/MJPEG multicast streaming
Video Resolution
• 16:9 - 1920 x 1080, 1280 x 720, 800 x 448, 640 x 360, 480 x 272, 320 x 176 up to 30 fps
• 4:3 - 1440 x 1080, 1280 x 960, 900 x 720, 800 x 592, 640 x 480, 480 x 352, 320 x 240 up to 30 fps
External Device Interfaces
• 10/100 BASE-TX Fast Ethernet port
• Supports 802.3af PoE Class 2
Network
Network Protocols
• IPv6
• IPv4
• ARP
• TCP/IP
• UDP
• ICMP
• DHCP client
• NTP client (D-Link)
• DNS client
• DDNS client (D-Link)
• SMTP client
• FTP client
• HTTP/HTTPS
• Samba client
• PPPoE
• UPnP port forwarding
• RTP/RTSP/RTCP
• IP filtering
• Multicast
• CoS
• QoS/DSCP
• SNMP
• ONVIF compliant
Security
• Administrator and user group protection
• Password authentication
• HTTP and RTSP authentication
System Management
System Requirements for Web Interface
• Browser: Internet Explorer, Firefox, Safari
Event Management
• Motion detection
• Event notification and uploading of snapshots/video clips via e-mail or FTP
• Supports multiple SMTP and FTP servers
• Multiple event notifications
• Multiple recording methods for easy backup
Remote Management
• Take snapshots/video clips and save to local hard drive accessible via web browser
• Configuration interface
D-ViewCam™ System Requirements
• Operating System: Microsoft Windows 8/7/Vista
• Protocol: Standard TCP/IP
• Web Browser: Internet Explorer 7 or higher
D-ViewCam™ Software Functions
• Remote management/control of up to 32 cameras
• Supports all management functions provided in web interface
• Viewing of up to 32 cameras on one screen
• Scheduled motion triggered, or manual recording options
Weight
• 525 g ± 5%
Power
• Input: 100 to 240 V AC, 50/60 Hz
• Output: 12 V DC 1.5 A
Power Consumption
• 5.5 watts ± 5% (PoE)
Temperature
• Operating: -30 to 50 °C (-22 to 124 °F)
• Storage: -20 to 70 °C (-4 to 158 °F)
Humidity
• Operating: 20% to 80% non-condensing
• Storage: 5% to 95% non-condensing
Certifications
• CE
• FCC
• CE LVD
• C-Tick
Dimensions
Certificates
Order info
DCS-4602EV Vigilance Full HD Outdoor Vandal-Proof PoE Dome Camera
