DKVM-CB3
3 m KVM Cable with VGA and PS/2
Description

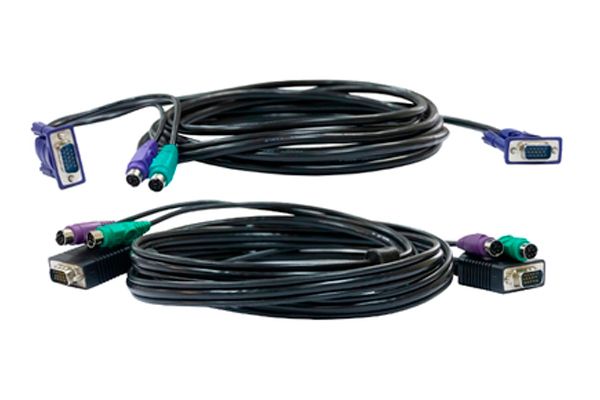

DKVM-CB3/A and DKVM-CB3/B 3 m KVM cables are designed for connecting PC to the D-Link DKVM-4K/A and DKVM-4K/B KVM switches. The cables are equipped with 6-pin mini-DIN connectors for connecting to PS/2 keyboard and mouse ports on the PC and on the KVM switch along with 15-pin HDB connectors for connecting to VGA port on the PC and on the KVM switch.
DKVM-CB3/A and DKVM-CB3/B combine several cables in one assembly, thus allowing you to save space on your table. Each connector has its own colour code (PC99), ensuring correct connection.
General features
| B | A | |
| Length | • 3 m | |
| Keyboard | • One 6-pin mini-DIN connector (purple) (PS/2) | • Two 6-pin mini-DIN connectors (purple) (PS/2) |
| Mouse | • One 6-pin mini-DIN connector (green) (PS/2) | • Two 6-pin mini-DIN connectors (green) (PS/2) |
| Video | • Two 15-pin HDB connectors (blue) (VGA) | |
| Advanced features | • Several cables in one assembly • Connector colour coding |
|
| KVM switch* | • DKVM-4K/B | • DKVM-4K/A |
*Note: The DKVM-CB3 KVM cable of B hardware version is compatible only with the DKVM-4K KVM switch of B hardware version. The DKVM-CB3 KVM cable of A hardware version is compatible only with the DKVM-4K KVM switch of A hardware version.
Certificates
Order info
DKVM-CB3/A 3 m KVM Cable with VGA and PS/2
Pictures

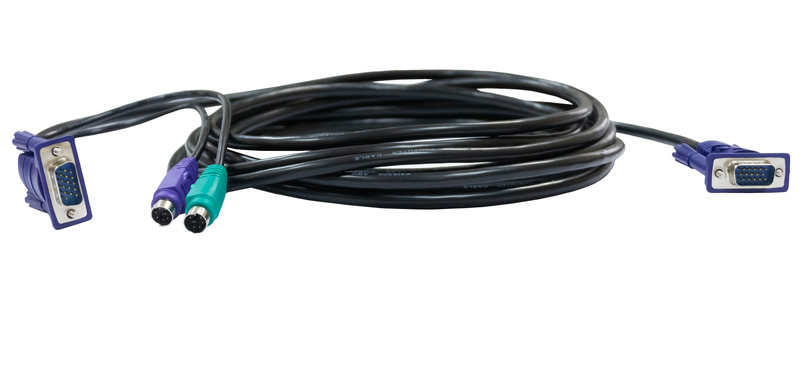

DKVM-CB3/Bx

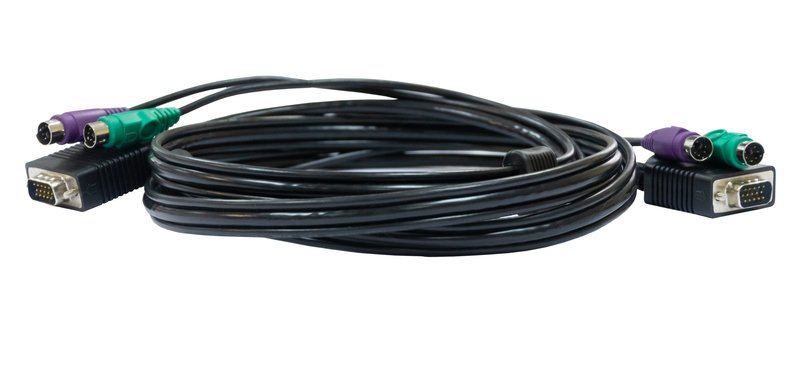

DKVM-CB3/Ax
