KVM-121
2-Port KVM Switch with VGA and PS/2 Ports
Description
The D-Link KVM-121 2-port KVM switch with VGA and PS/2 ports allows you to manage two computers with one monitor, one keyboard and one mouse. The KVM-121 requires no driver installation and no external power adapter connection. This KVM switch allows you to switch between computers quickly and easily using the button located on the top panel or keyboard hot keys. The KVM-121 supports autoscan mode, which provides automatic switching to the next PC after the scan interval expires.
General features
Hardware
Ports for connecting KVM cables
• 2 VGA ports
Ports for connecting management console
• Monitor (local): VGA
• Keyboard (local): PS/2
• Mouse (local): PS/2
KVM cable connectors for connecting PC
• Video: 15-pin HDB connector (VGA)
• Keyboard: 6-pin mini-DIN connector (purple) (PS/2)
• Mouse: 6-pin mini-DIN connector (green) (PS/2)
LEDs
• 2 port LEDs for connected PCs
Buttons
• Switching button
Enclosure
• Plastic
General Specifications
Connected PCs
• 2
Autoscan mode
• Yes
Switching between PCs
• Switching button on the top panel
• Hot keys
Sound notification of switching
• Yes
Max. resolution
• 2048x1536
Physical Parameters
Weight
• 430 g
Dimensions (L x W x H)
• 90 x 40 x 25 mm
Environmental Conditions
Power Supply
• From PS/2 keyboard port on PC (no external power adapter required)
Temperature
• Operating: 0 to 50 °C
• Storage: -20 to 60 °C
Humidity
• 0% to 80% non-condensing
Certificates
Order info
KVM-121 2-Port KVM Switch with VGA and PS/2 Ports

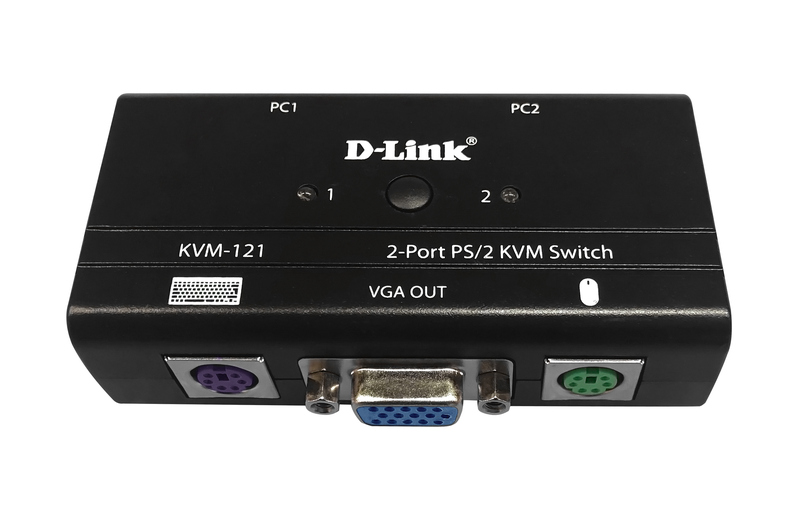

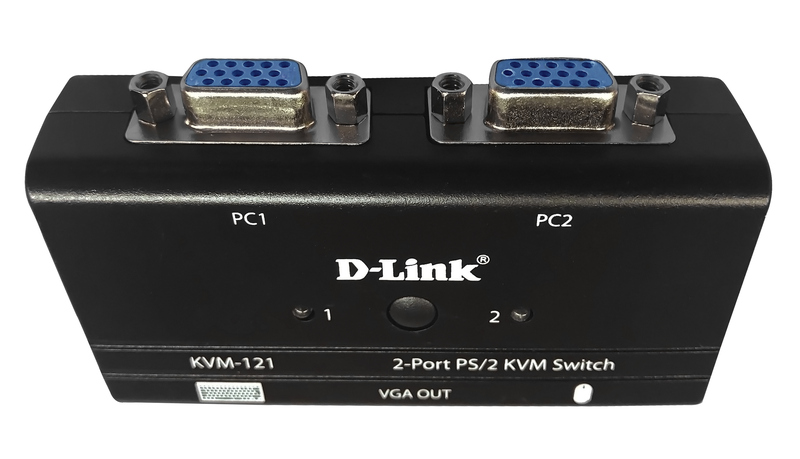

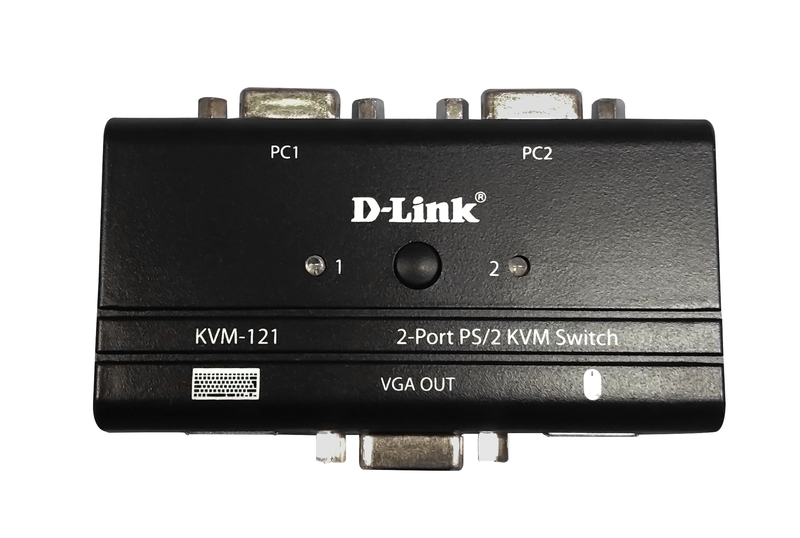

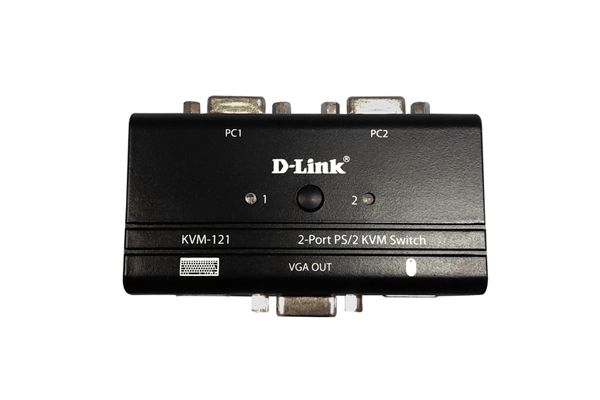

Pictures
KVM-121/Bx
