DXS-PWR550ACNew

550 W AC Power Supply with a Fan for the 5000 Series Switches
Where to buy

Description

DXS-PWR550AC is a 550 W AC power supply with a fan for the 5000 Series switches (DXS-PWR550AC/F: front-to-back fan air flow; DXS-PWR550AC/B: back-to-front fan air flow).

General features

Input Voltage Range
• 90~264 VAC

Input Frequency
• 47~63 Hz

Max. Inrush Current
• 50 A

Output Voltage
• +12 V DC

Output Current
• 44 A

Output Power
• 550 W

Efficiency
• 91%

Fan Air Flow
• Front-to-back (DXS-PWR550AC/F)
• Back-to-front (DXS-PWR550AC/B)

MTBF
• 319,428 hours

Temperature
• Operating: 0 to 50 °C
• Storage: -40 to 70 °C

Humidity
• Operating: 5 to 95% non-condensing
• Storage: 5 to 95% non-condensing

Compatible switches
• DXS-5000-54S
• DQS-5000-32S
• DQS-5000-32Q28
• DQS-5000-54SQ28

Certificates

Order info

DXS-PWR550AC/F  550 W AC Power Supply with a Fan for the 5000 Series Switches

Pictures

DXS-PWR550AC/F

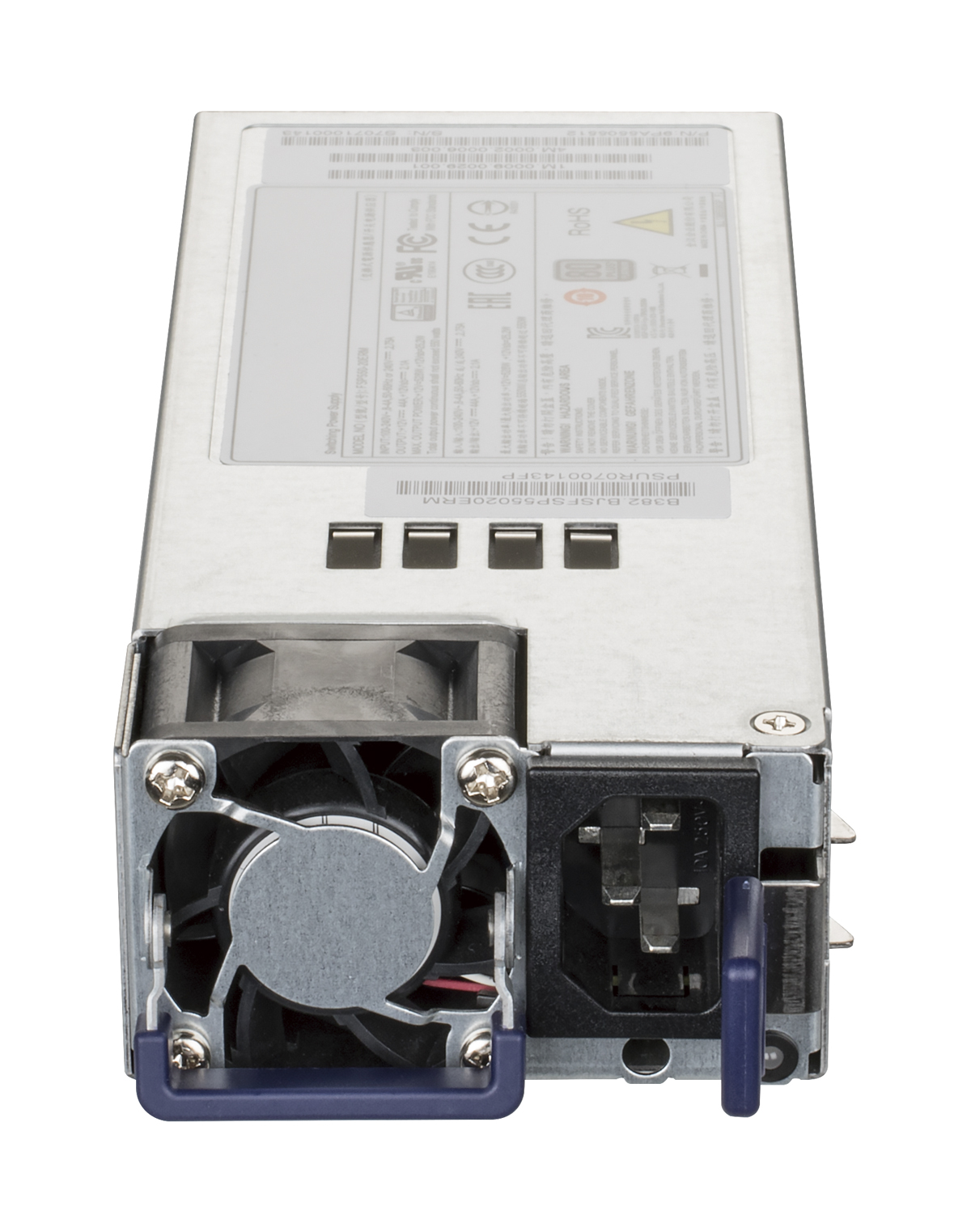

Front view

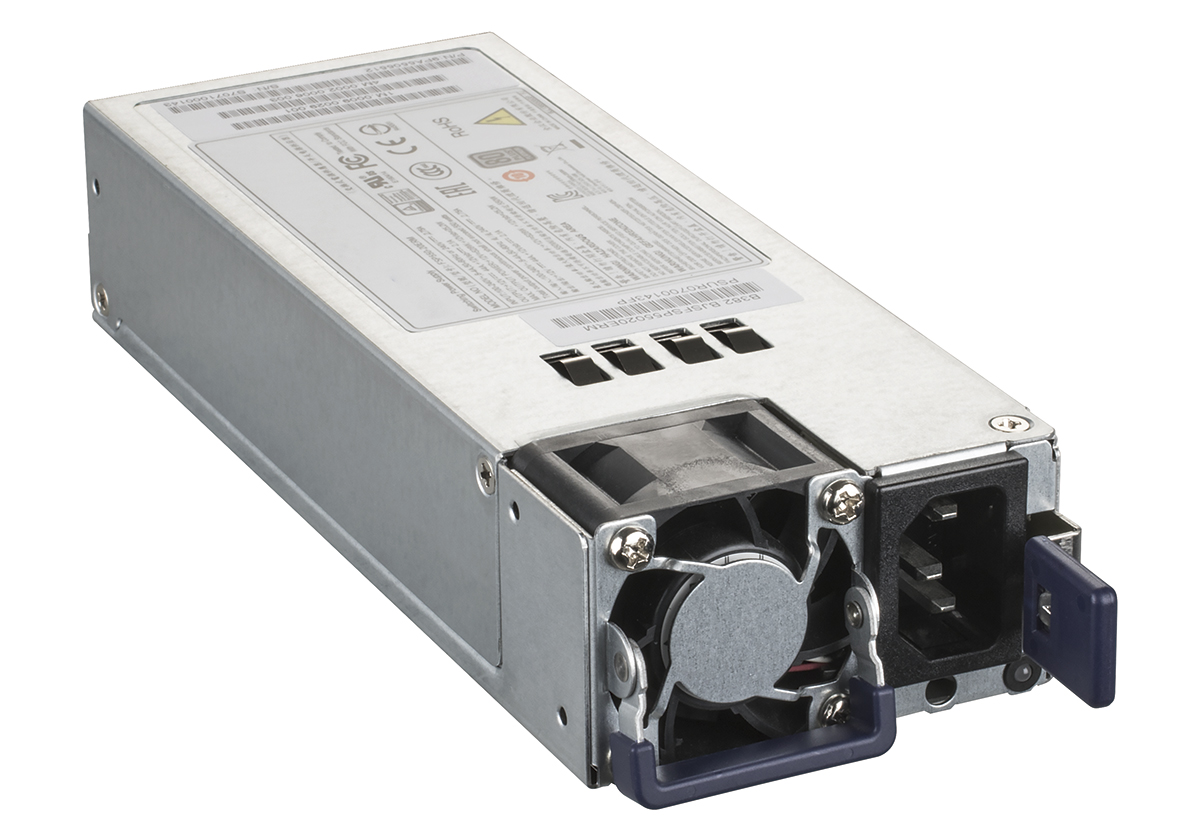

View from the right
