8-Port 10/100Mbps Unmanaged SwitchWhere to buy
The DES-1005D/1008D 5/8-Port 10/100Mbps Unmanaged Switch is an economical, plug-and-play networking switch solution for SOHO and small and medium businesses wanting to benefit from the increased bandwidth of Fast Ethernet. It provides five/eight 10/100 Mbps ports that enable you to easily expand your network and provide a quick way to upgrade your network to fast connectivity.
Fast and Reliable Networking
With data transfer speeds of up to 200 Mbps at full duplex, the D-Link DES-1005D/1008D 5/8-Port 10/100Mbps Unmanaged Switch is ideal for quick file transfers, online gaming and smooth streaming media. The DES-1005/1008 features front, easy-to-access Ethernet ports with LED indicators per port to easily distinguish link status. Additionally the switch features a Kensington Security Slot on the rear panel to easily secure to a shelf or desk.
The 5/8-Port 10/100Mbps Unmanaged Switch features D-Link’s Green Technology to save energy and reduce heat, which in turn extends product life without sacrificing performance or functionality. The switch supports IEEE 802.3az Energy-Efficient Ethernet (EEE) which can detect when a connected computer is shut down or when there is no Ethernet traffic, and will proceed to power down the idle port, saving a substantial amount of power. In addition, the switch can also save energy by detecting the length of cable connected to a port and use only as much power as is required. Both of these features work together to help you save power automatically.
The 5/8-Port 10/100Mbps Unmanaged Switch was designed with the environment in mind. It is compliant with Energy Star Level V, CEC, and MEPS regulations which require the use of energy efficient power adapters. The switch is built to comply with RoHS standards to minimize use of hazardous materials and is packaged with an EnergyStar Level V qualified power adapter in a recyclable packaging, making this product truly environmental friendly.
The DES-1005D/1008D features QoS which prioritizes network traffic so that time-sensitive data is delivered efficiently, even during bursts of high data traffic. This helps ensure an optimal experience for streaming media, VoIP calls, and online gaming.
Eight 10/100 Mbps LAN ports
• IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TX
• IEEE 802.3x Flow Control
• IEEE 802.1p QoS
• IEEE 802.3az Energy-Efficient Ethernet (EEE)
• Green Ethernet
• 1/1.6 Gbps switching fabric
• Auto MDI/MDIX crossover for all ports
• Secure store-and-forward switching scheme
• Full/half-duplex for Ethernet/Fast Ethernet speeds
• Supports 2,048-Byte jumbo frames
• Back pressure at half-duplex operation
• Wire-speed reception and transmission
• Store and-Forward switching method
• Auto-negotiation for each port
• RoHS compliant.
• ErP compliant
• EEE compliant IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TX
• IEEE 802.3az EEE
• IEEE 802.3x flow control
• IEEE 802.1p QoS (4 queues, strict mode)
Data Transfer Rates
• 10 Mbps (half duplex)
• 20 Mbps (full duplex)
• Fast Ethernet:
• 100 Mbps (half duplex)
• 200 Mbps (full duplex)
MAC Address Table
• 2 k
MAC Address Learning
• Automatic Update
Packet Filtering/Forwarding Rates
• Ethernet: 14,880 pps per port
• Fast Ethernet: 148,800 pps per port
768KB per device

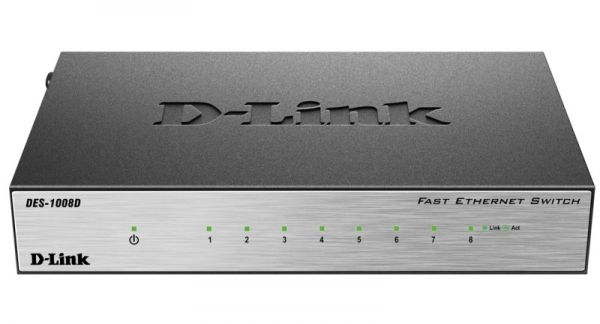

DES-1008D/L2 8-Port 10/100Mbps Unmanaged Switch
