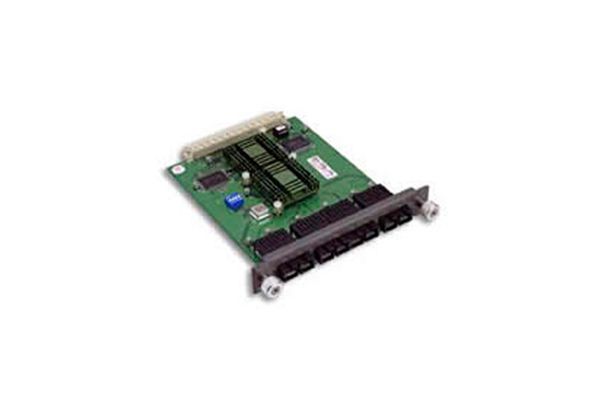

DES-124FEOL EOS
100Base-FX Fiber Module
Description
• 4 X 100Mbps fiber ports (SC connectors)
• Up to 2.4Gbps Backplane forwarding rate
• 5MB memory buffer
• 12K-entry MAC Address Table
• Store-and-forward technology for abnormal packet filtering
• Half-duplex and full-duplex modes supported
• DIP-switches to set between 100M Full-duplex and 100M Half-duplex modes
• LED-indicators for LK/ACT, FD/COL statuses
• For establishing fiber links cable distance up to 2 Km (multi-mode) or 60 Km (single-mode)
General features
Operating Temperature
0ºC to 45ºC
Operating Humidity
10% to 90% (Non-condensing)
Power Supply
Input rate: 100~240VAC, 50~60Hz
EMI
FCC Class A, CE Mark
Certificates
Order info
DES-124F 4 100BASE-FX Fast Ethernet fiber ports (SC connectors)
