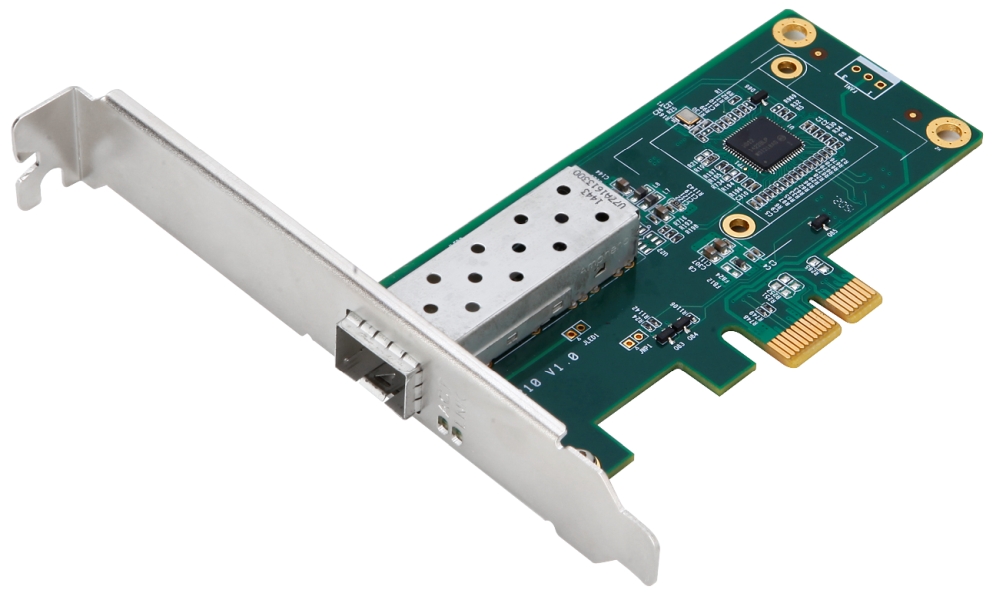

The high performance DGE-560SX PCI Express Gigabit Ethernet Network Adapter offers increased bandwidth and connection reliability than standard PCI network cards. This adapter supports data rates of up to 2 Gbps over fiber optic cable in full-duplex mode, eliminating the bottleneck that exists in 32-bit and 64-bit PCI bus architectures.



The DGE-560SX supports the onboard screening of 802.1Q VLAN Tagged Ethernet frames, allowing to create several subnets for each server and isolate devices within each VLAN from the other part of a network for security enhancement and traffic management.



The DGE-560SX supports power saving mode in your network. This adapter is compliant with IEEE 802.3az Energy-Efficient Ethernet and reduces the power consumption when network utilization is low.



With support of such advanced features as 802.3x Flow Control and Jumbo frame, the DGE-560SX can easily interoperate with your current networking equipment. The DGE-560SX also supports 802.1p Priority Encoding.
