DGS-1024D/E1AEOL EOS

24-Port Gigabit Switch

Apraksts

Think Green
D-Link’s DGS-1016D 16-Port Gigabit Switch and DGS-1024D 24-Port Gigabit Switch are part of a new series of SOHO/SMB devices that make use of D-Link’s 2nd generation Green Ethernet technology, providing more energy savings and a longer product life without sacrificing operational performance or functionality. Recyclable packaging and minimized use of harmful substances (RoHS compliant) make this switch truly environmentally friendly.

Conserves Energy
By building on the foundation of D-Link’s 2nd generation of Green Ethernet technology, the 16/24-Port Gigabit Switch helps you conserve energy automatically through several methods. It automatically powers down ports that have no link, allowing the switch to save substantial amounts of power by cutting power usage for unused ports or ports connected to computers that have been shut down. It can also detect connected cable lengths, and adjusts power usage accordingly, helping you save energy without affecting networking performance.

Environmentally Friendly
The 16/24-Port Gigabit Switch was designed with the environment in mind, and was built to follow RoHS standards to minimize use of hazardous materials. It uses recyclable packaging that helps reduce waste, and complies with the WEEE directive.

Īpašības

Key features
• Innovative 2nd Generation D-Link Green Technology
• Inexpensive Gigabit solution for SOHO/SMB
• Silent, fanless design
• Auto MDI/MDI-X crossover for all ports
• Store-and-forward switching scheme
• Full/half-duplex for Ethernet/Fast Ethernet speeds
• IEEE 802.3x Flow Control
• Supports 9,600bytes Jumbo Frames
• Supports IEEE 802.1p QoS (4 Queues, Strict Mode)
• Supports Cable Diagnostics Function
• RoHS compliant
• Plug-and-play installation

Number of ports
• 24 Gigabit ports

Switching fabric
• 48Gbps

Standards
• IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
• IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
• IEEE 802.3ab 1000baSe-t Gigabit Ethernet (twisted-pair copper)
• ANSI/IEEE 802.3 NWay auto-negotiation
• IEEE 802.3x flow control
• IEEE 802.1p QoS (4 queues, strict mode)

Protocol
• CSMA/CD

Data Transfer Rates
Ethernet:
• 10Mbps (half duplex)
• 20Mbps (full duplex)
Fast Ethernet:
• 100Mbps (half duplex)
• 200Mbps (full duplex)
Gigabit Ethernet:
• 2000Mbps (full duplex)

Topology
• Star

Network cables
10BASE-T:
• UTP CAT 3, 4, 5/5e (100m max.)
• EIA/TIA-586 100-ohm STP (100m max.)
100BASE-TX, 1000BASE-T:
• UTP CAT 5/5e (100m max.)
• EIA/TIA-568 100-ohm STP (100m max.)

Media interface exchange
• Auto MDI/MDI-X adjustment for all ports

LED indicators
• Per port: Link/Activity/Speed
• Per device: Power

Transmission method
• Store-and-forward

MAC address table
• 8K entries per device

MAC address learning
• Automatic update

Packet filtering/forwarding rates (half duplex)
• Ethernet: 14,880pps per port
• Fast Ethernet: 148,800pps per port
• Gigabit Ethernet: 1,488,000pps per port

RAM buffer
• 512KB per device

Sertifikāti

Informācija pasūtījumam

DGS-1024D/E1A  24-Port Gigabit Switch

Attēli

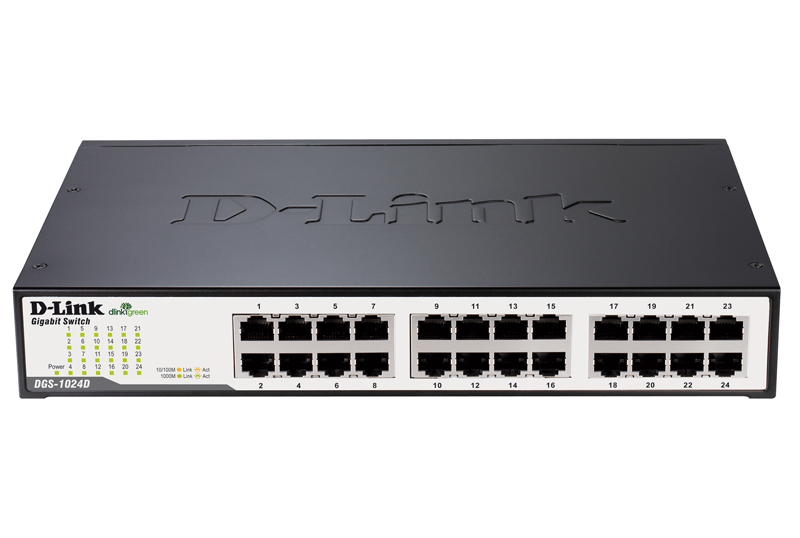

DGS-1024D/E1A/E1
View from the right
