DGS-1024C/F6

24-Port 10/100/1000 Mbps Unmanaged Switch

Kirjeldus

The DGS-1024C 10/100/1000 Mbps Unmanaged Switch is economical, plug-and-play networking switch solutions for SOHO and small and medium businesses wanting to benefit from the increased bandwidth of Gigabit Ethernet. It provides 24 10/100/1000 Mbps ports that enable you to easily expand your network and provide a quick way to upgrade your network to fast connectivity.

Upgrade to Gigabit Networking
With data transfer speeds of up to 2000 Mbps at full duplex, this switch is ideal for quick file transfers, online gaming and smooth streaming media. It features easy-to-access Ethernet ports with LED indicators per port to easily distinguish link status. Auto MDI/MDIX crossover makes connection a cinch; just plug in your cables and you're ready to go.

Conserve Energy
The DGS-1024C implements 802.3az Energy Efficient Ethernet, which saves energy and reduces heat automatically without sacrificing performance or functionality. The switch can detect when a connected computer is shut down or when there is no Ethernet traffic and can automatically reduce the power used for that port, cutting power usage substantially. In addition, the switch optimizes power usage for each port for the length of cable connected to it, using only as much power as is required. Both of these features work together to help you save power automatically.

Reliable Plug and Play Installation
The DGS-1024C is Plug-and-Play device that requires no configuration, so setup is simple and hassle-free, and you can easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multiplayer gaming environment. 802.3x flow control on each port minimizes dropped packets when the port's receiving buffer is full, giving you a more reliable connection for all of your connected devices.

Smooth Streaming
This switch supports QoS, which prioritizes network traffic so that time-sensitive data is delivered efficiently, even during bursts of high data traffic. This helps ensure an optimal experience for streaming media and VoIP calls.

Põhiomadused

Interfaces
• 24 x 10/100/1000 Mbps LAN ports

LEDs
• Power (per device)
• Link/Activity/Speed (per port)

Port Standards & Functions
• IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TX
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3x Flow Control
• IEEE 802.1p QoS (8 queues, strict mode)
• IEEE 802.3az Energy-Efficient Ethernet (EEE)
• Auto MDI/MDIX crossover for all ports
• Full/half-duplex for Ethernet/Fast Ethernet speeds
• Back pressure at half-duplex operation
• Auto-negotiation for each port

Data Transfer Rates
• Ethernet:
  10 Mbps (half duplex)
  20 Mbps (full duplex)
• Fast Ethernet:
  100 Mbps (half duplex)
  200 Mbps (full duplex)
• Gigabit Ethernet
  2000 Mbps (full duplex)

Performance
Switching Capacity
• 48 Gbps

Transmission Method
• Store-and-forward

MAC Address Table
• 8K entries

Maximum Packet Forwarding Rate
• 35.712 Mpps

RAM Buffer
• 512 KB per device

Jumbo Frame Size
• 9 216 byte

Physical Parameters
Dimensions (L x W x H)
• 294 x 180 x 44 mm

Weight
• 1.14 kg

Power Input
• AC Input: 100 to 240 V AC 50/60 Hz

Maximum Power Consumption
• 13.5 W

Standby Power Consumption
• 6.5 W

Heat Dissipation
• 13.49 W 46.04 BTU/hr

MTBF
• 247 291 hours

Acoustics
• 0 dB

Surge Protection
• Built-in 6 kV surge protection on all copper ports

Temperature
• Operating: 0 to 45 C
• Storage: -40 to 70 C

Humidity
• Operating: 10% to 90% (Non-condensing)
• Storage: 5% to 90% (Non-condensing)

Certifications
• CE Class B
• CE (LVD 2006/95/EC)

Sertifikaadid

Sidustooted

DGS-1024C/F6/E 24-Port 10/100/1000 Mbps Unmanaged Switch

Pildid

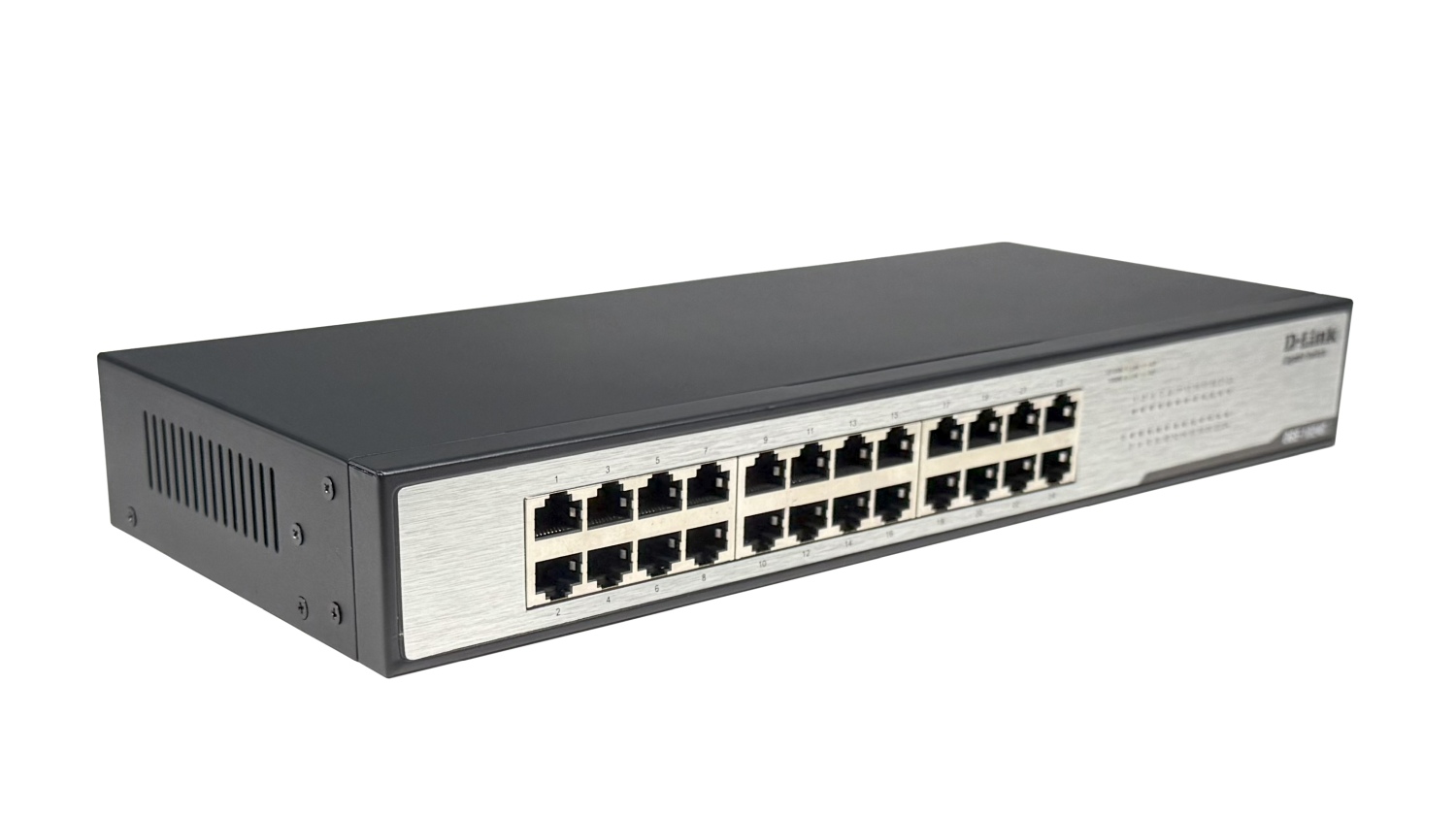

DGS-1024C/F6/E
