DEM-CB300S

10G Passive SFP+ Twinaxial Direct Attach Cable 3m

Kirjeldus

DEM CB300S is designed to support connections1 for 10 Gbps Gigabit Ethernet switches. The 10G Passive SFP+ Twinaxial Direct Attach Cable is equipped with SFP+ connectors,  and is suitable for the distances up to 3 meters.

Ideal for High-Bandwidth Operations
The D-Link 10G Passive SFP+ Twinaxial Direct Attach Cable supports speeds of up to 10Gbps, while having lower latency and power consumption than other cables types such as 10GBASE-CX4 and CAT6/CAT6A 10GBASE-T. This makes it an optimal solution for handling high bandwidth transmission within short distances such as inside energy-efficient data centers.
11 It is recommended that you only use the 10G Passive SFP+ Twinaxial Direct Attach Cable with D-Link products.

Põhiomadused

Hardware Version
B1
D1
General
Device Rate
10 Gbps Gigabit Ethernet
Connector Type
SFP+ Cable Assembly
Wire AWG
30 AWG
VMA Loss to Crosstalk Ratio (VCR)
Min.: 32.5 dB
Physical
Minimum Cable Bend Radius
23.5 mm (0.93 inches)
39 mm (1.54 inches)
Cable Characteristic Impedance
100 Ohms
Maximum Nominal Voltage
30 V AC
30 V DC
Operating Voltage
3.3 V DC
Current
0.5 А
Operating Temperature
-40 to 85 °C (-40 to 185 °F)
0 to 70 °(32 to 158 °F)
Storage Temperature
-40 to 85 °C (-40 to 185 °F)
-40 to 85 °C (-40 to 185 °F)
Operating Humidity
45% to 75%
35% to 65%
Storage Humidity
45% to 75%
35% to 65%
Certifications

SFP MSA (Multi-Source Agreement)
SFF-8431
EIA 364
UL 94

SFP MSA (Multi-Source Agreement)
SFF-8432
EIA-364
UL 94
EIA-364-1000.01
RoHS

Sertifikaadid

Sidustooted

DEM-CB300S/D1  10G Passive SFP+ Twinaxial Direct Attach Cable, 3m

Pildid

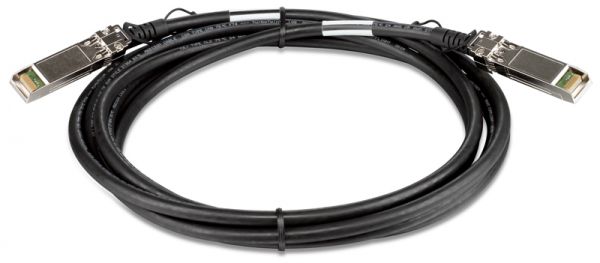

DEM-CB300S/A
